SPECIFICATIONS

EXPAND ALL COLLAPSE ALL

  • Engine

    ModelKomatsu SAA6D170E-7
    TypeFour-cycle, water-cooled, direct injection
    AspirationTurbo-charged, after-cooled, cooled EGR
    Number of cylinders6
    Bore x stroke170 mm x 170 mm
    Displacement23.15 ltr
    Horsepower, Gross - SAE J1995396 kW / 530 HP
    Horsepower, Net - ISO 9249 / SAE J1349395 kW / 529 HP
    Rated RPM1800
    Fan drive methodHydraulic
    Emissions certificationEPA Tier 4 Final

  • Operation / Application

    Bucket capacity SAE6.4 - 7.8 m3
    Standard bucket capacity SAE7.8 m3
    Bucket descriptionLoad and carry bucket
    Bucket width3805 mm
    Dump clearance at 45° dump angle3615 mm
    Dump reach at 45° dump angle2000 mm
    Static tipping load, straight43265 kg
    Static tipping load, full turn37080 kg
    Breakout force 355 kN 36200 kgf

  • Axles and Final Drives

    Drive systemFour-wheel drive
    FrontFixed, full-floating
    RearCentre-pin support, full-floating, 22° total oscillation
    Reduction gearSpiral bevel gear
    Differential gearConventional type
    Final reduction gearPlanetary gear, single reduction

  • Brakes

    Service brakesHydraulically actuated, wet multiple-disc brakes actuate on four wheels
    Parking brakeWet multiple-disc brake
    Secondary brakeOne of the dual service brake circuits is commonly used

  • Hydraulic System

  • Service Refill Capacities

    Cooling system150 ltr
    Fuel tank718 ltr
    Engine86 ltr
    Hydraulic system443 ltr
    Axle front185 ltr
    Axle rear193 ltr
    Torque converter and transmission78 ltr
    DEF tank60 ltr

  • Steering System

    TypeArticulated type, fully hydraulic power steering
    Steering angle43° each direction
    Minimum turning radius at centre of outside tyre7075 mm

  • Transmission

  • Tyres

    WA600-8 Standard tyres35/65-R33 (L5)
    WA600-8LC Standard tyres35/65-R33 (L4)

  • Weights

    Operating weight55,400 - 57,460 kg

WA600-8/LC Wheel Loader

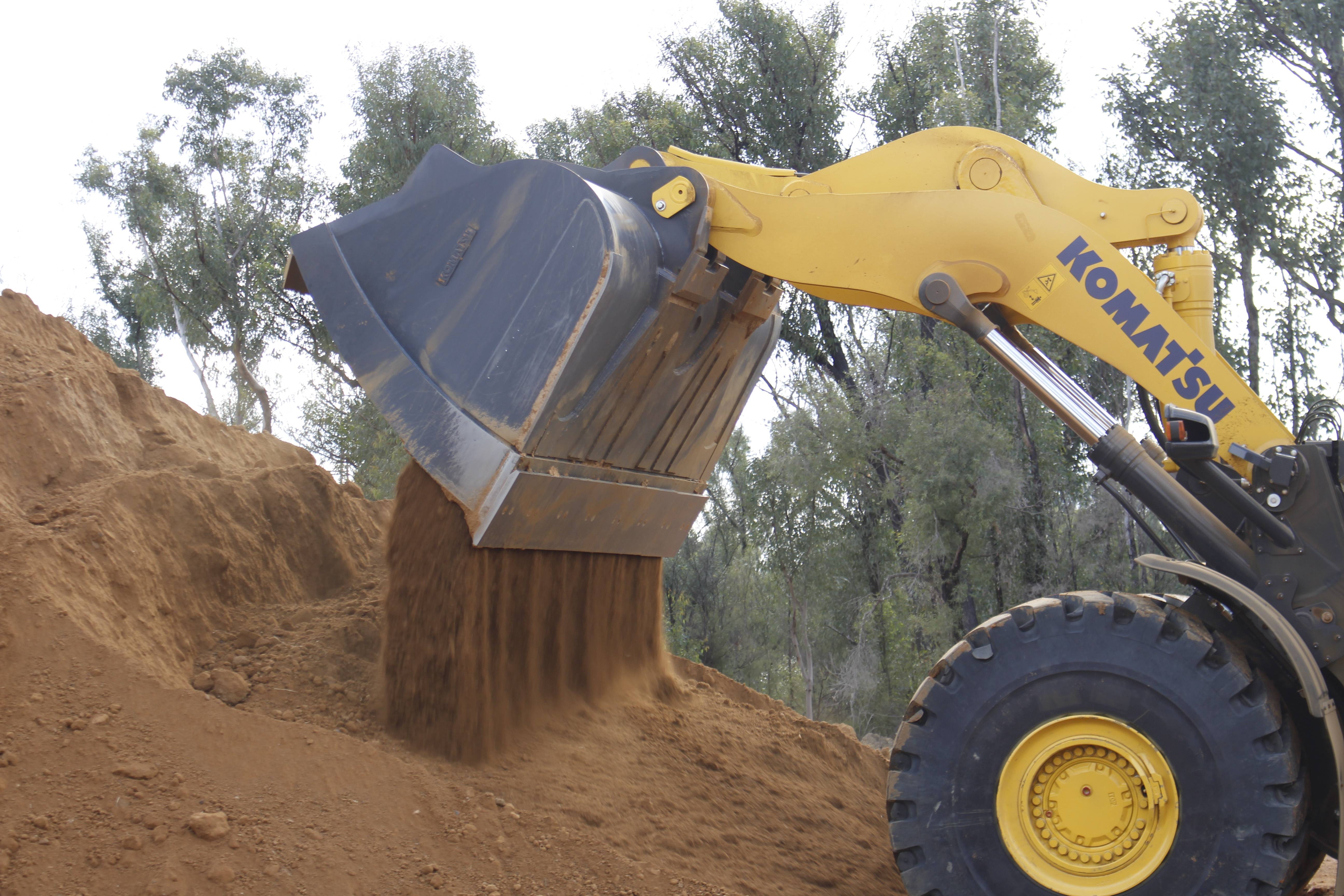

With its powerful low emission Tier 4 Final-compliant Komatsu engine, the 6.4-7.8 m3 capacity WA600-8 is designed as production loading tool in hard rock quarries, sand and gravel pits, and in mining ROM applications. As with all our wheel loaders, key components are designed and manufactured by Komatsu to work together in an integrated package. And it comes standard with our Komtrax remote monitoring and location system, backed by our NZ-wide service and support network.


Tier 4 Engine KDPF Regeneration
  • 395 kW / 529 HP
    ENGINE POWER
  • 57,460 kg
    OPERATING WEIGHT
  • 7.8 m³
    BUCKET CAPACITY

WA600-8/LC Wheel Loader

Current Offers

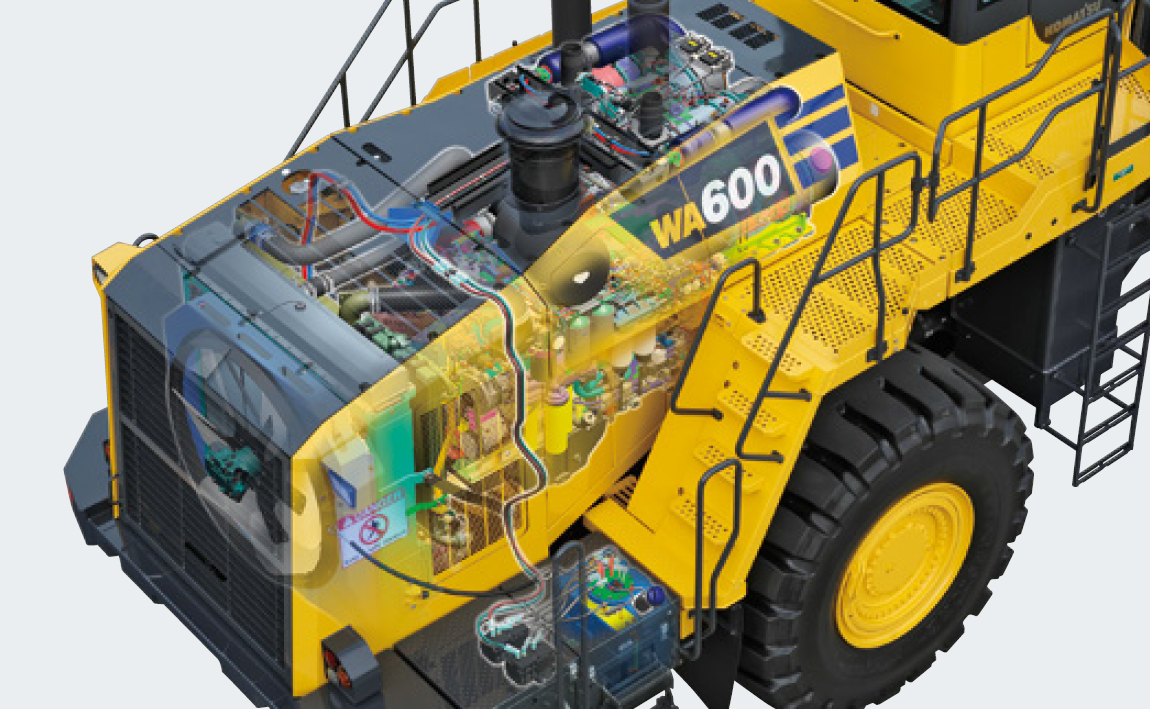

Large Capacity Lock-Up Torque Converter

The Komatsu-designed power train features a large capacity torque converter for optimum efficiency. The large capacity torque converter allows the loader to up-shift gears faster for improved acceleration and hill climbing ability. In most applications, production is increased and fuel consumption is reduced, resulting in improved fuel efficiency

Komatsu SmartLoader Logic

Komatsu's SmartLoader Logic controls engine torque to match machine demands. This system optimises engine torque for all applications to minimise fuel consumption. Komatsu's SmartLoader Logic functions automatically and doesn't interfere with operation, saving fuel without decreasing production

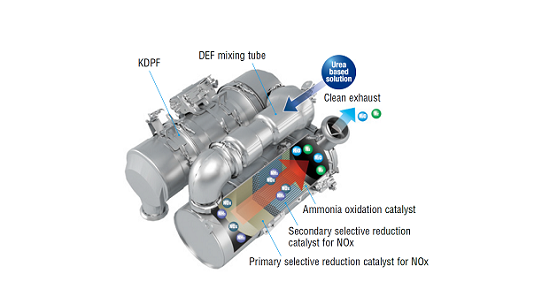

Komatsu Diesel Particulate Filter and Selective Catalytic Reduction System

The KDPF and SCR reduces particulate matter and NOx while providing automatic regeneration that does not interfere with daily operation
