SPECIFICATIONS

EXPAND ALL COLLAPSE ALL

  • Engine

    ModelKomatsu SAA6D107E-1
    TypeFour-cycle, water-cooled, direct injection
    AspirationTurbo-charged, after-cooled
    Number of cylinders6
    Bore x stroke107 mm x 124 mm
    Displacement6.69 ltr
    Horsepower, Gross - SAE J1995104 kW / 140 HP
    Horsepower, Net - ISO 9249 / SAE J1349103 kW / 138 HP
    Rated RPM2000
    Fan drive methodHydraulic
    Emissions certificationEPA Tier 3

  • Operation / Application

    Standard bucket capacity SAE2.3 m3
    Bucket descriptionStockpile bucket, pin on
    Bucket width2550 mm
    Dump clearance at 45° dump angle2945 mm
    Dump reach at 45° dump angle945 mm
    Static tipping load, straight9340 kg
    Static tipping load, full turn8170 kg
    Breakout force 131 kN 13380 kgf

  • Axles and Final Drives

    Drive systemFour-wheel drive
    FrontFixed, semi-floating
    RearCentre-pin support, semi-floating, 24° total oscillation
    Reduction gearSpiral bevel gear
    Differential gearTorque proportioning
    Final reduction gearPlanetary gear, single reduction

  • Brakes

    Service brakesHydraulically actuated, wet disc brakes actuate on four wheels
    Parking brakeWet, multi-disc brake on transfer output shaft
    Secondary brakeParking brake is commonly used

  • Hydraulic System

  • Service Refill Capacities

    Cooling system22 ltr
    Fuel tank186 ltr
    Engine23 ltr
    Hydraulic system67 ltr
    Axle front18 ltr
    Axle rear18 ltr
    Transfer case5 ltr

  • Steering System

    TypeArticulated type, fully hydraulic power steering
    Steering angle38° each direction (40° to max end stop)
    Minimum turning radius at centre of outside tyre5175 mm

  • Transmission

    TransmissionHydrostatic, 1 pump, 2 motors with speed range select
    Travel speedForward & Reverse
    1st4.0 - 13.0 km/h
    2nd13.0 km/h
    3rd18.0 km/h
    4th38.0 km/h
    Measured with 20.5-25 tyres

  • Tyres

    Standard tyres20.5-25-16PR, L2 tubeless

  • Weights

    Operating weight11,950 - 12,690 kg

WA250PZ-6 Wheel Loader

With bucket capacities from 1.9-2.7 m3, our hydrostatic drive WA250PZ-6 features Komatsu’s PZ parallel-lift arm system and hydrostatic drive, for maximum versatility and productivity across loading, handling and lifting applications. As with all our wheel loaders, key components are designed and manufactured by Komatsu to work together in an integrated package. And it comes standard with our Komtrax remote monitoring and location system, backed by our NZ-wide service and support network.

  • 103 kW / 138 HP
    ENGINE POWER
  • 11,950 kg
    OPERATING WEIGHT
  • 2.3 m³
    BUCKET CAPACITY

WA250PZ-6 Wheel Loader

Current Offers

High Productivity and Low Fuel Consumption

A powerful SAA6D107E-1 turbocharged air-to-air aftercooled diesel engine provides a net output of 103 kW / 138 HP for the WA250PZ-6. This engine is EPA Tier 3 emissions certified, without sacrificing power or machine productivity. The high-torque engine and Hydrostatic Transmission (HST) with maximum efficiency in the low-speed range provide low fuel consumption.

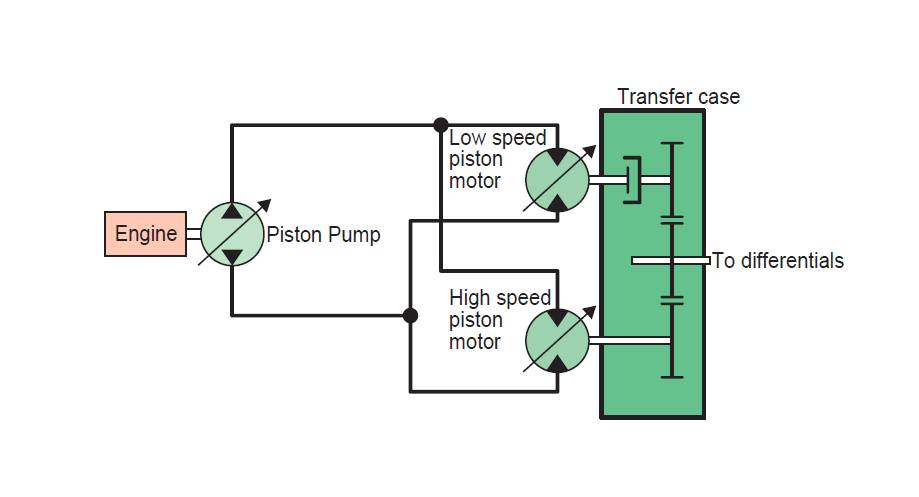

Electronically-Controlled HST

The electronically-controlled HST consists of a 1-pump, 2-motor system. This system allows for high-efficiency and high tractive effort. The HST provides quick travel response and aggressive drive into the pile. The variable displacement system automatically adjusts to the tractive effort demand to provide maximum power and efficiency

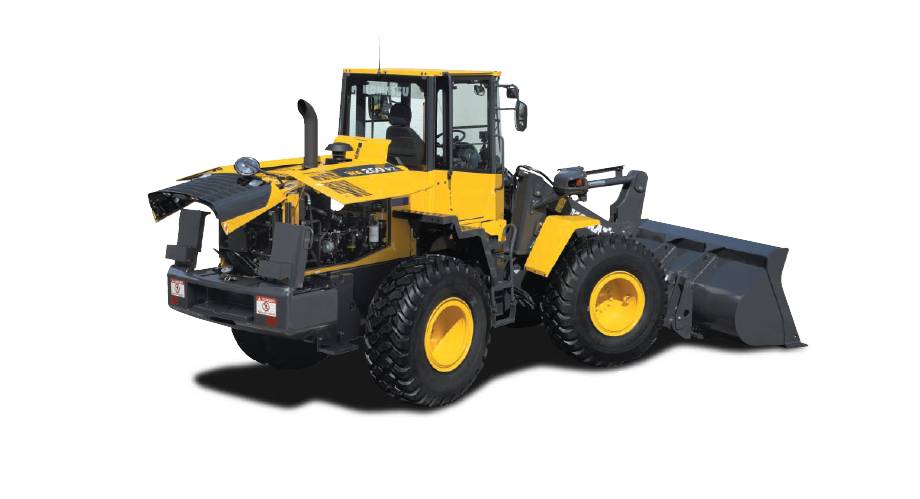

Easy Maintenance

The operator can open and close each gull-wing type engine side door easily with the assistance of a gas spring to perform daily service checks from the ground.
