SPECIFICATIONS

EXPAND ALL COLLAPSE ALL
  • Engine

    Model Komatsu SAAD95LE-5
    Type Water-cooled, 4-cycle, direct injection
    Aspiration Variable flow, turbocharged, Water-cooled
    Number of Cylinders 4
    Piston Displacement 3.26 ltr
    Horsepower, Gross - SAE J1995 72.1 kW
    Horsepower, Net - ISO 9249 / SAE J1349 68.4 kW
    Rated RPM 2200
    Emissions certification EPA Tier 3
  • Hydraulic System

    Type HydrauMind System
    Number of selectable working modes 5
    Main pump type Variable displacement system
    Pump for Boom, arm, bucket, swing, and travel circuits
    Maximum flow 241.5 ltr/min



  • Drives and Brakes

    Steering control Two levers with pedals
    Drive method Fully hydrostatic
    Maximum drawbar pull 122.6 kN 12500 kgf
    Travel speeds 2.9 / 5.5 km/h
    Service brake Hydraulic lock
    Parking brake Mechanical disc brake
  • Swing System

    Driven by Hydrostatic
    Swing reduction Planetary gear
    Swing circle lubrication Grease-bathed
    Service brake Hydraulic lock
    Swing lock Mechanical Disc brake
    Swing speed 11.0 rpm
  • Undercarriage

    Center frame X-frame leg
    Track frame Box-bathed
    Track type Sealed track
    Track adjuster Hydraulic
    Number of shoes (each side) 43
    Number of carrier rollers (each side) 1
    Number of track rollers (each side) 7
    Shoe size & type 500 mm triple grouser
  • Coolant & Lubricant capacity

    Fuel tank 247 ltr
    Coolant 13.9 ltr
    Engine 11.5 ltr
    Final drive, each side 2.1 ltr
    Swing drive 2.5 ltr
    Hydraulic tank 90 ltr
    DEF tank None
  • Weights

    Operating weight
    Without Blade 12,920 - 13,060 kg
    With Blade 14,060 - 14,200 kg
  • Dimensions (transport position)

    Length, overall (mm) 7590
    Track length on ground (mm) 2880
    Track gauge (mm) 1990
    Overall track width (mm) 2490
    Overall height (mm) 2875
    Ground clearance (mm) 400
  • Operation

    Boom size (m) & type 4.6 standard
    Arm size (m) & type 2.5 standard
    Arm crowd force - ISO (kgf) 6880
    Bucket crowd force - ISO (kgf) 9520
    Digging depth - maximum (mm) 5520
    Digging reach - maximum (mm) 8290
    Maximum reach @ ground level 8170
    Swing radius (mm) 2190

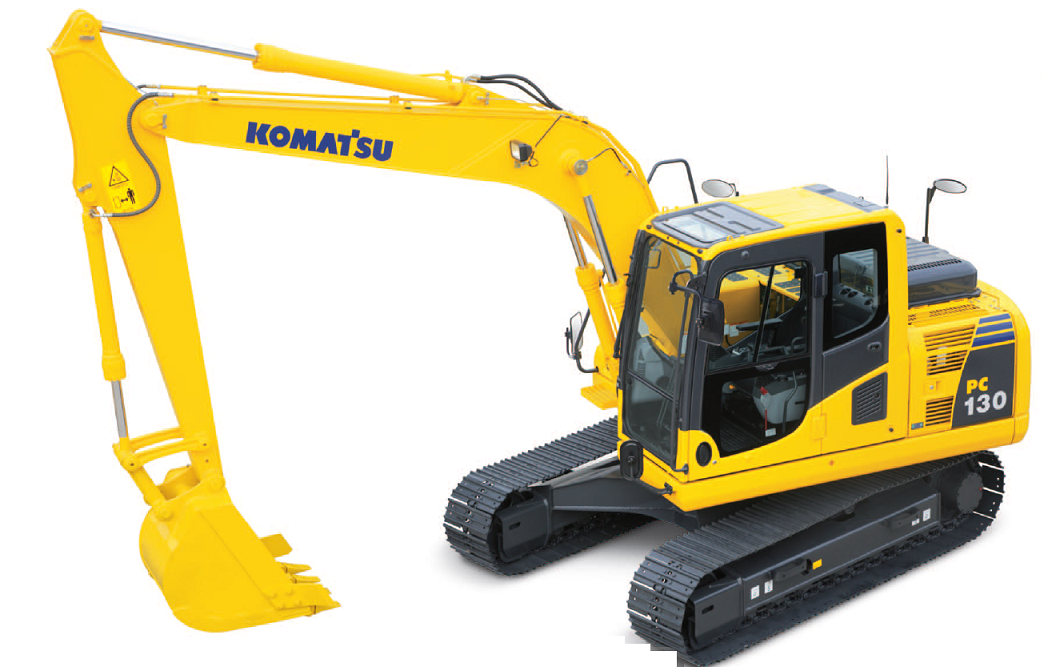

PC130-8 Excavators

This 13 tonne excavator makes an ideal workhorse for smaller building and construction sites where productivity and performance is required. As with all our construction excavators, key components are designed and manufactured by Komatsu to work together in an integrated package. And it comes standard with our KOMTRAX remote monitoring and location system, backed by our NZ-wide service and support network.

  • 68.4 kW / 92 HP
    ENGINE POWER
  • 13,060 kg
    OPERATING WEIGHT
  • 0.53 m³
    BUCKET CAPACITY

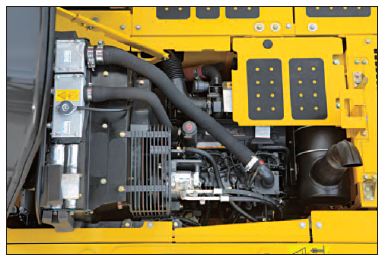

Low operation noise

Enables low noise operation using the low-noise engine and methods to cut noise at source.
Electronically controlled common rail type engine
• Multi-staged injection
• Low noise design
• Optimal arrangement of sound absorbing materials
• Partition between the cab and engine room

Wide Newly-designed Cab

Newly-designed wide spacious cab includes seat with reclining backrest. The seat height and longitudinal inclination are easily adjusted using a pull up lever. You can set the appropriate
operational posture of armrest together with the console. Reclining the seat further enables you to place it into the fully flat state with the headrest attached.

Easy Maintenance

• Long replacement interval of engine oil, engine oil filter, and hydraulic filter
• Remote mounted engine oil filter, engine main fuel filter and fuel drain valve for easy access
• Equipped with the fuel pre-filter as standard (with water separator)
• Side-by-side cooling concept enables individual cooling modules to be serviced.
• Equipped with the EMMS monitoring system
