SPECIFICATIONS

EXPAND ALL COLLAPSE ALL

  • Engine

    ModelKomatsu SAA6D114E-6
    Type4-cycle, water-cooled, direct injection
    AspirationTurbocharged, air-to-air aftercooled
    Number of Cylinders6
    bore x stroke114 mm x 144.5 mm
    Horsepower, Gross - SAE J1995179 kW / 240 HP
    Horsepower, Net - ISO 9249 / SAE J1349177 kW / 237 HP
    Rated RPM2100 min-1
    Piston displacement8.85 L
    Fan drive typeHydraulic
    Lubrication systemGear pump, forced lubrication
    Emissions certificationEPA Tier 4 Final Engine

  • Hydraulic System

    TypeClosed-centre load sensing system (CLSS)
    Maximum pump flow235 L/min
    Relief valve setting - For implement28.8 MPa, 294 kgf/cm2
    Hydraulic cylinderNo. of cylinders x bore
    Blade lift2 x 120 mm
    Blade tilt130 mm
    Blade angle2 x 110 mm
    Ripper liftRaise, hold and lower

  • Hydrostatic transmission (HST)

  • Final drives

  • Steering system

    TypeHydrostatic Steering System (HSS)
    Steering controlTilt steering
    Minimum turning radius3.1 m (3.3 m for Wide)

  • Undercarriage

    SuspensionOscillation-type with an equaliser bar and pivot shafts
    Track roller frameMonocoque, large section, durable construction
    TracksLubricated tracks with PLUS
    Number of track rollers (each side)8
    Number of shoes (each side)45
    Number of carrier rollers2
    Shoe typeSingle grouser
    Shoe width D71EXi-24 = 610 mm D71PXi-24 = 760 mm D71PXi-24 Wide = 915 mm

  • Coolant & Lubricant capacity

    Coolant54.5 L
    Fuel tank439 L
    Engine oil30.5 L
    Hydraulic tank154 L
    Final drive (each side)10 L
    DEF tank20 L

  • Weights

    Operating weightD71EXi-24: 22700 kg D71PXi-24: 23200 kg D71PXi-24 Wide: 24000 kg

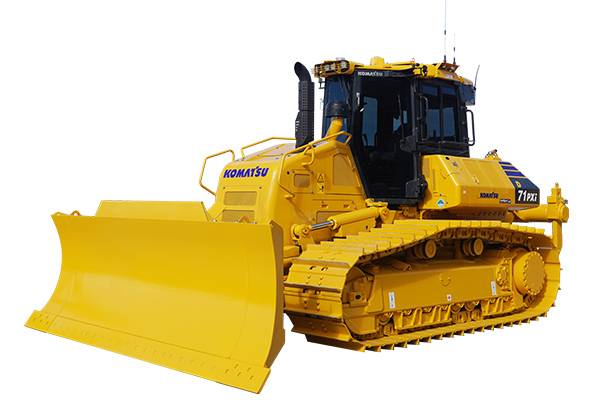

D71EXi/PXi-24 Dozers

Now with a new technology Komatsu engine, our intelligent Machine Control (iMC) 2.0 D71EXi-24 bulldozer – available in both standard and low-ground-pressure configurations – incorporates a unique fully integrated blade control system, allowing it to carry out both bulk and final trim dozing in automatic from start to finish with final grade performance. This significantly increases productivity and efficiency while reducing the cost of each metre of material moved. And it comes standard with our Komtrax remote monitoring and location system, backed by our NZ-wide service and support network.

For new and used dozers for sale request a quote below.

Tier 4 Engine KDPF Regeneration


  • 162 kW / 217 HP
    ENGINE POWER
  • 23,373 kg
    OPERATING WEIGHT
  • 5.6 m³
    BLADE CAPACITY

D71EXi/PXi-24 Dozers

Intelligent Performance

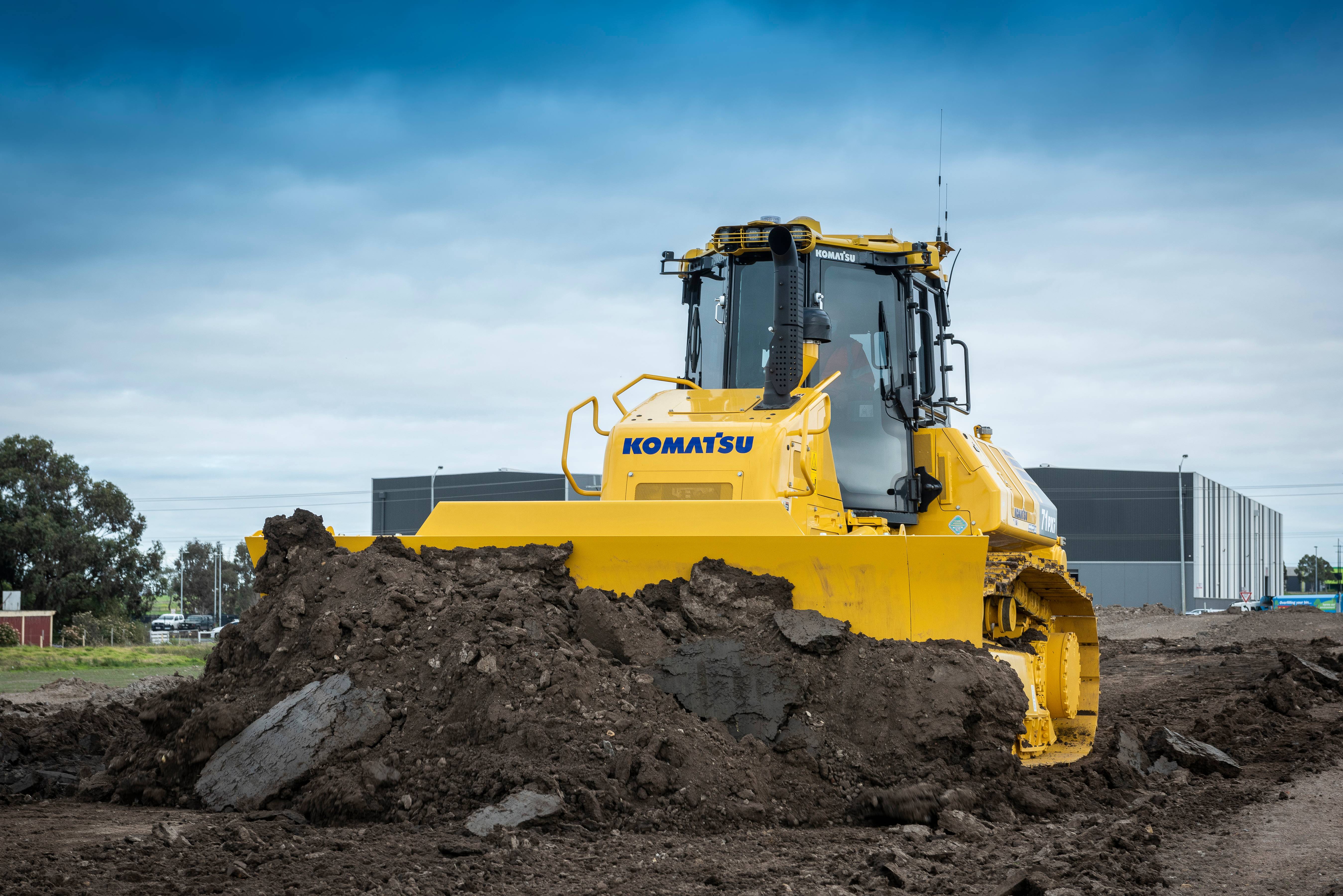

The Komatsu D71EXi-24 Intelligent Machine Control 2.0 dozer offers an outstanding improvement in productivity with its innovative and fully automatic blade control function that performs both rough dozing and finish grading in automatic mode.

Current Offers

Hydrostatic transmission (HST) control system

The D71EX/PX-24 is equipped with Komatsu-designed HST provides smooth powerful turns. Fully electronic control provides full automatic shifting and enables smooth control. The travel speed can be selected smoothly with the UP/ DOWN switch, and the engine power is maximised in all speed ranges. In addition, a powerful and smooth turn is achieved by controlling the outer track faster and the inner crawler track slower.

Unrivaled Blade Visibility

The D71EXi/PXi-24 incorporates Komatsu’s super-slant nose design. Komatsu’s innovative design provides excellent blade visibility for improved machine control and increased efficiency and productivity.

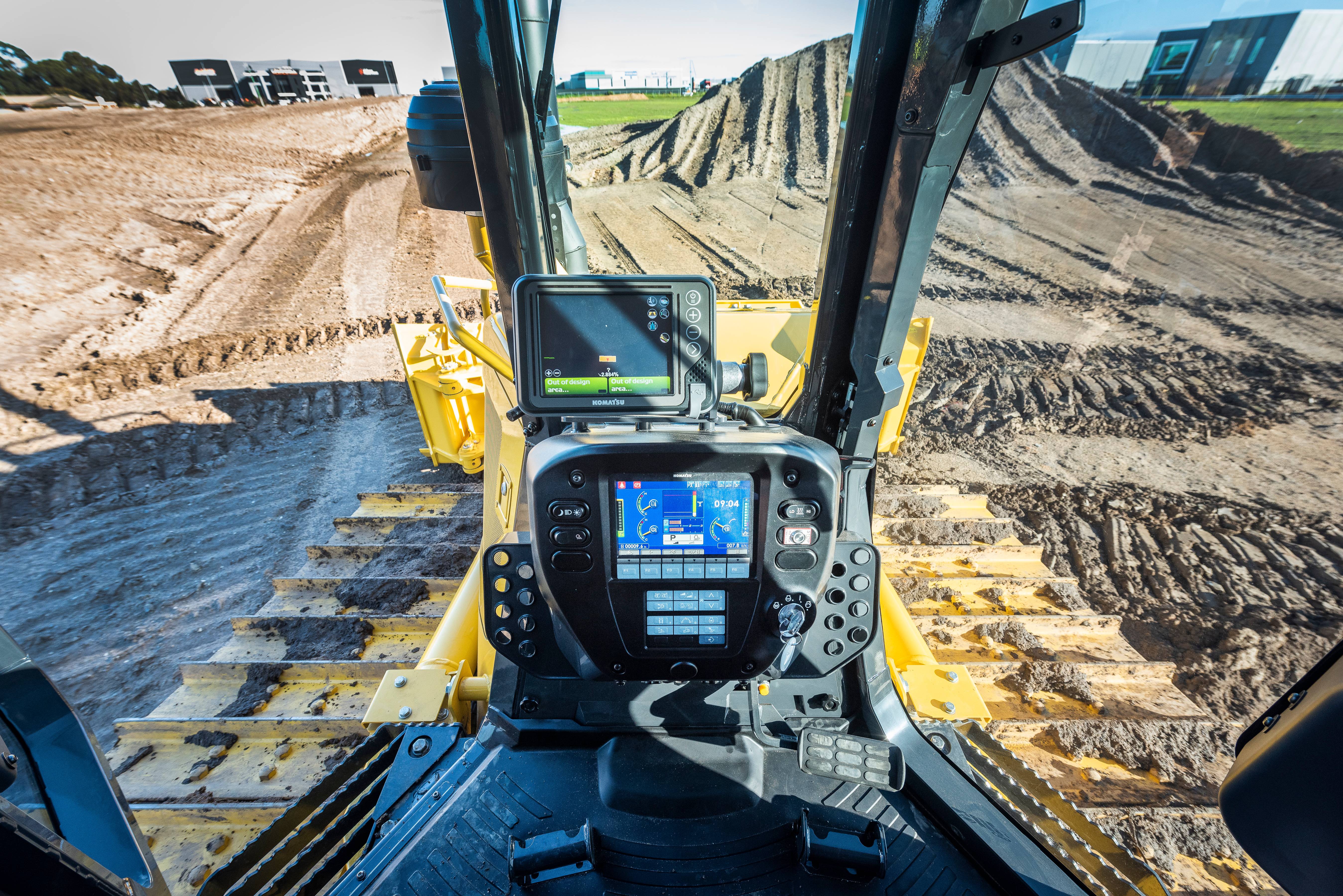

Next Generation Intelligence

The D71EXi/PXi-24 features improved machine efficiency for work ranging from heavy dozing to finish grading with intelligent Machine Control 2.0 technologies. Lift layer control realises consistent lift layers with automatic control, while proactive dozing control cut and carry work is smooth as if performed by experienced operator.
