SPECIFICATIONS

EXPAND ALL COLLAPSE ALL
  • Engine

    Model Komatsu SAA6D140E-5
    Type 4-cycle, water-cooled, direct injection
    Aspiration Turbocharged, after-cooled, cooled EGR
    Number of Cylinders 6
    bore x stroke 140 mm x 165 mm
    Horsepower, Gross - SAE J1995 268 kW / 360 HP
    Horsepower, Net - ISO 9249 / SAE J1349 264 kW / 354 HP
    Rated RPM 1900
    Piston displacement 15.24 ltr
    Fan drive type Hydraulic
    Lubrication system Gear pump
    Emissions certification EPA Tier 3
  • Hydraulic System

    Type Closed-centre load sensing system
    Maximum pump flow 325 ltr/min
    Relief valve setting - For implement 280 kg/cm2
    Relief valve setting - For steering 390 kg/cm2
    Hydraulic cylinder No. of cylinders x bore
    Blade lift 2 x 110 mm
    Blade tilt 1 x 160 mm
    Ripper lift 1 x 180 mm
    Ripper tilt 1 x 200 mm
  • Torqflow transmission

    Komatsu’s automatic TORQFLOW transmission consists of a watercooled, 3-element, 1-stage, 1-phase torque converter with lockup clutch, and a planetary gear, multiple-disc clutch transmission which is hydraulically actuated and force-lubricated for optimum heat dissipation. Gearshift lock lever and neutral safety switch prevent machine from accidental starts.

    Travel speeds
    Forward 0 - 11.6 km/h
    Reverse 0 - 14 km/h
  • Final drives

    Double-reduction, spur and planetary final drives increase tractiveeffort. Segmented sprockets are bolt-on for easy in-the-field replacement.

  • Steering system

    PCCS lever controls for all directional movements. Pushing the PCCS lever forward results in forward machine travel, while pulling it rearward reverses the machine. Simply tilt the PCCS lever to the left to make a left turn. Tilt it to the right for a right turn. Hydrostatic steering system (HSS) is powered by steering planetary units and an independent hydraulic pump and motor. Counterrotation turns are also available.Wet, multiple-disc, pedal-controlled service brakes are spring-actuated and hydraulically released. Gearshift lock lever also applies parking brakes.

    Type Hydrostatic Steering system
    Minimum turning radius 2.14 m
  • Undercarriage

    Suspension Oscillating equaliser bar and forward pivot shaft
    Track roller frame Monocoque, large section, durable construction
    Rollers and idlers Lubricated track rollers
    Number of track rollers (each side) 7
    Number of shoes (each side) 42
    Number of carrier rollers (each side) 2
    Shoe width 560 mm
  • Coolant & Lubricant capacity

    Coolant 82 ltr
    Fuel tank 625 ltr
    Engine oil 37 ltr
    Final drive (each side) 31 ltr
    Transmission, bear gear, and steering system 90 ltr
    DEF tank None
  • Weights

    Operating weight 39,500 kg

D155AX-6 Dozers

This 40 tonne dozer offers a choice of Sigma and semi-U blades, making it suitable for a wide range of applications, including civil construction, agriculture, waste management and other sectors. As with all our dozers, key components are designed and manufactured by Komatsu to work together in an integrated package. And it comes standard with our KOMTRAX remote monitoring and location system, backed by our NZ-wide service and support network.

  • 264 kW / 354 HP
    ENGINE POWER
  • 39,500 kg
    OPERATING WEIGHT
  • 9.4 m³
    BLADE CAPACITY

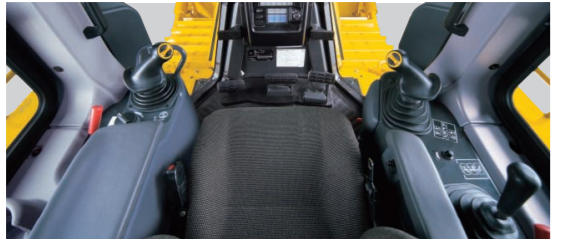

Ergonomic Control System

Palm command travel joystick provides the operator with a relaxed posture and superb fine control without operator fatigue. Transmission gear shifting is simplified with thumb push buttons.
