SPECIFICATIONS

EXPAND ALL COLLAPSE ALL

  • Engine

  • Operation / Application

    Engine1 249 kW
    KESS**820 kW
    Payload
    Standard40 823 kg
    High lift38 102 kg
    Bucket capacity sized to material density
    Truck match181 - 236 tonne

  • Axles and Final Drives

    Diesel power options
    MTU Detroit diesel engineTier one
    Model12V Series 4000 12 cylinders
    Type4-cycle turbocharged
    Rated power1,193 kW (1,600 HP) @ 1,800 rpm

  • Brakes

  • Hydraulic System

  • Service Refill Capacities

  • Steering System

  • Transmission

  • Tyres

  • Weights

    Fuel 3 501 L
    Hydraulic 1 419 L
    SR converter cooling system117 L
    Engine cooling system382 L
    Crankcase (includes filters)
    Detroit 330 L
    Cummins216 L
    Gearbox27 L
    Planetaries (each)136 L

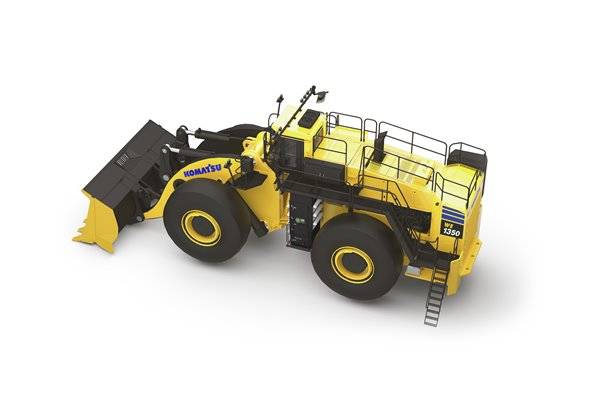

WE1350 Wheel Loader

When your goal is maximising your mining operation’s productivity, it’s all about cost per tonne. The versatile WE1350 is engineered to improve both sides of the equation: low cycle times and utmost reliability to boost your tonnage, multiple features designed to minimise your fuel and maintenance costs.

  • 1,249 kW / 1,676 HP
    ENGINE POWER
  • 194,228 kg
    OPERATING WEIGHT
  • 22.94 m³
    BUCKET CAPACITY

WE1350 Wheel Loader

Current Offers

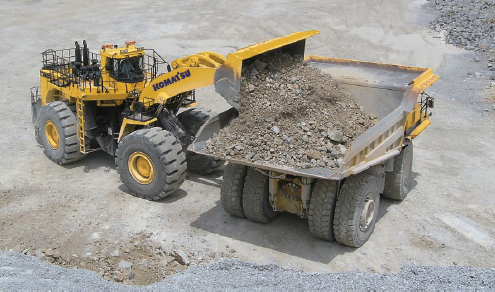

Matching with Dump Trucks

The WA1200-6 equipped with a 20.0 m3 bucket can load a 140-tonne truck in four passes. Due to its extra dumping clearance and reach it is able to load 180-tonne trucks in five passes. The high lift version can load 290-tonne plus trucks.

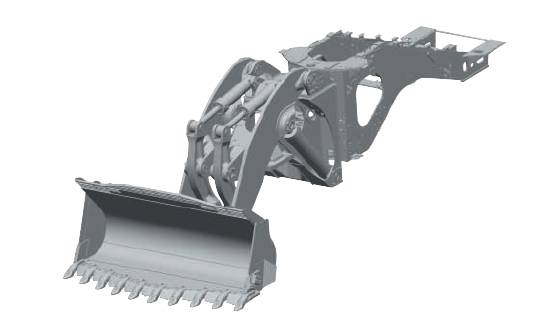

High-Rigidity Frames and Loader Linkage

The front and rear frames along with the loader linkage have increased torsional rigidity for stress resistance. Frame and loader linkage are designed and computer tested for proven strength to accommodate actual working loads

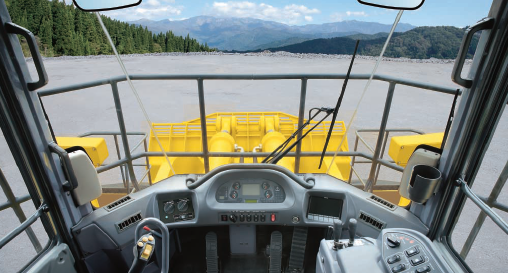

Comfortable Operation

The cab is large, with a comfortably spacious interior and power windows. Also a wide angle is guaranteed because the cab is pillar-less. By adopting a high-capacity air conditioner, Komatsu ensures operator comfort, no matter the exterior conditions.
