SPECIFICATIONS

EXPAND ALL COLLAPSE ALL

  • Engine

    ModelKomatsu SAA4D107E-3
    TypeWater-cooled, 4-cycle
    AspirationVariable geometry, turbo-charged, after-cooled, cooled EGR
    Number of cylinders4
    Bore x stroke107 mm 4.21" x 124 mm 4.88"
    Displacement4.46 ltr 272 in³
    Horsepower, Gross - SAE J199595.2 kW / 128 HP
    Horsepower, Net - ISO 9249 / SAE J134994 kW / 126 HP
    Rated RPM2000 rpm
    Fan drive method Hydraulic
    Emissions certification EPA Tier 4

  • Operation / Application

    Standard bucket capacity SAE2.6 – 3.1 yd3 2.0 – 2.4 m3
    Bucket descriptionPin On, General Purpose, Bolt on Edge
    Bucket width2550 mm
    Dump clearance at 45° dump angle2965 mm
    Dump reach at 45° dump angle950 mm
    Static tipping load, straight8725kg
    Static tipping load, full turn7645
    Breakout force11,000 kgf

  • Axles and Final Drives

    Drive systemFour-wheel drive
    FrontFixed, semi-floating
    RearCenter-pin support, semi-floating, 24° total oscillation
    Reduction gearSpiral bevel gear
    Differential gearTorque proportioning
    Final reduction gearPlanetary gear, single reduction

  • Brakes

    Service brakesHydraulically actuated, wet disc brakes actuate on four wheels
    Parking brakeWet, multi-disc brake on transfer output shaft
    Secondary brakeOne of dual service brake circuits is commonly used

  • Hydraulic System

    Steering System:
    Hydraulic pumpGear type pump
    Capacity (at rated rpm)85 ltr/min 22.5 U.S. gal/min at rated rpm
    Relief valve setting20.6 MPa 210 kgf/cm2 3,000 psi
    Hydraulic Cylinders:
    TypeDouble-acting, piston type
    Number of cylinders2
    Bore x stroke70 mm x 453 mm 2.76" x 17.8"

  • Service Refill Capacities

    Cooling system26.5 ltr
    Fuel tank177 ltr
    Engine15.5 ltr
    Hydraulic system58 ltr
    Axle front18.5 ltr
    Axle rear18 ltr
    Transfer case5 ltr
    DEF tank14 ltr

  • Steering System

    TypeArticulated type, fully-hydraulic power steering
    Steering angle38° each direction (40° to max end stop)
    Minimum turning radius at centre of outside tyre4880 mm 16' 0"

  • Transmission

    TransmissionHydrostatic, 1 pump, 2 motors with speed range select
    Travel speedForward & Reverse
    1st0 - 14.3 km/h 0 - 8.9 mph
    2nd14.3 km/h 8.9 mph
    3rd23.2 km/h 14.4 mph
    4th38.0 km/h 23.6 mph
    Measured with 20.5-R25 tires

  • Tyres

    Standard tyres20.5R25 L3 Radials

  • Weights

    Operating weight25,827– 26,489 lb 11715 – 12015 kg

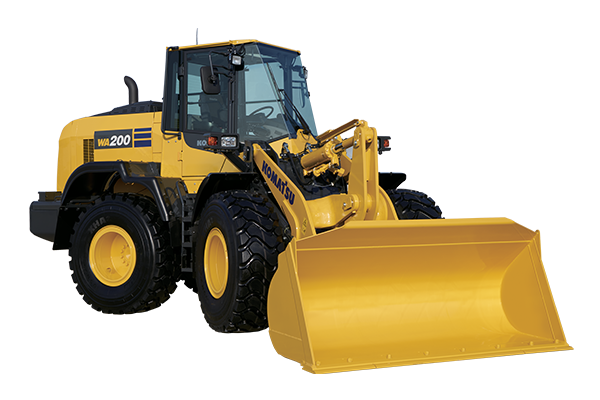

WA200-8 Wheel Loader

The Komatsu WA200-8 offers bucket capacities from 2.0-2.4 m³. The Komatsu SAA4D107E-3 engine, which is EPA Tier 4 Final emissions certified, reduces fuel consumption, and provides exceptional performance. It comes fully integrated with Komatsu's remote equipment monitoring system Komtrax Level 5, backed by our NZ-wide service and support network.


Tier 4 Engine KDPF Regeneration
  • 94 kW / 126 HP
    ENGINE POWER
  • 11,715 kg
    OPERATING WEIGHT
  • 2.0 m³
    BUCKET CAPACITY

WA200-8 Wheel Loader

Current Offers

Agility and Productivity

Proven, Fourth Generation Hydrostatic Transmission with Quick Acceleration, Dynamic Braking, Variable Traction Control System and Creeping Mode.

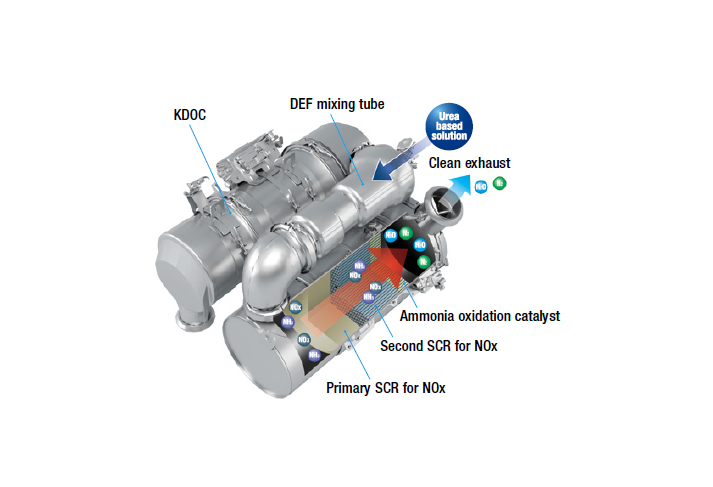

Powerful and Environmentally Friendly

Komatsu Diesel Oxidation Catalyst (KDOC) and new Selective Catalytic Reduction (SCR) systems reduce hydrocarbons, carbon monoxide, and NOx without interfering with daily operation.

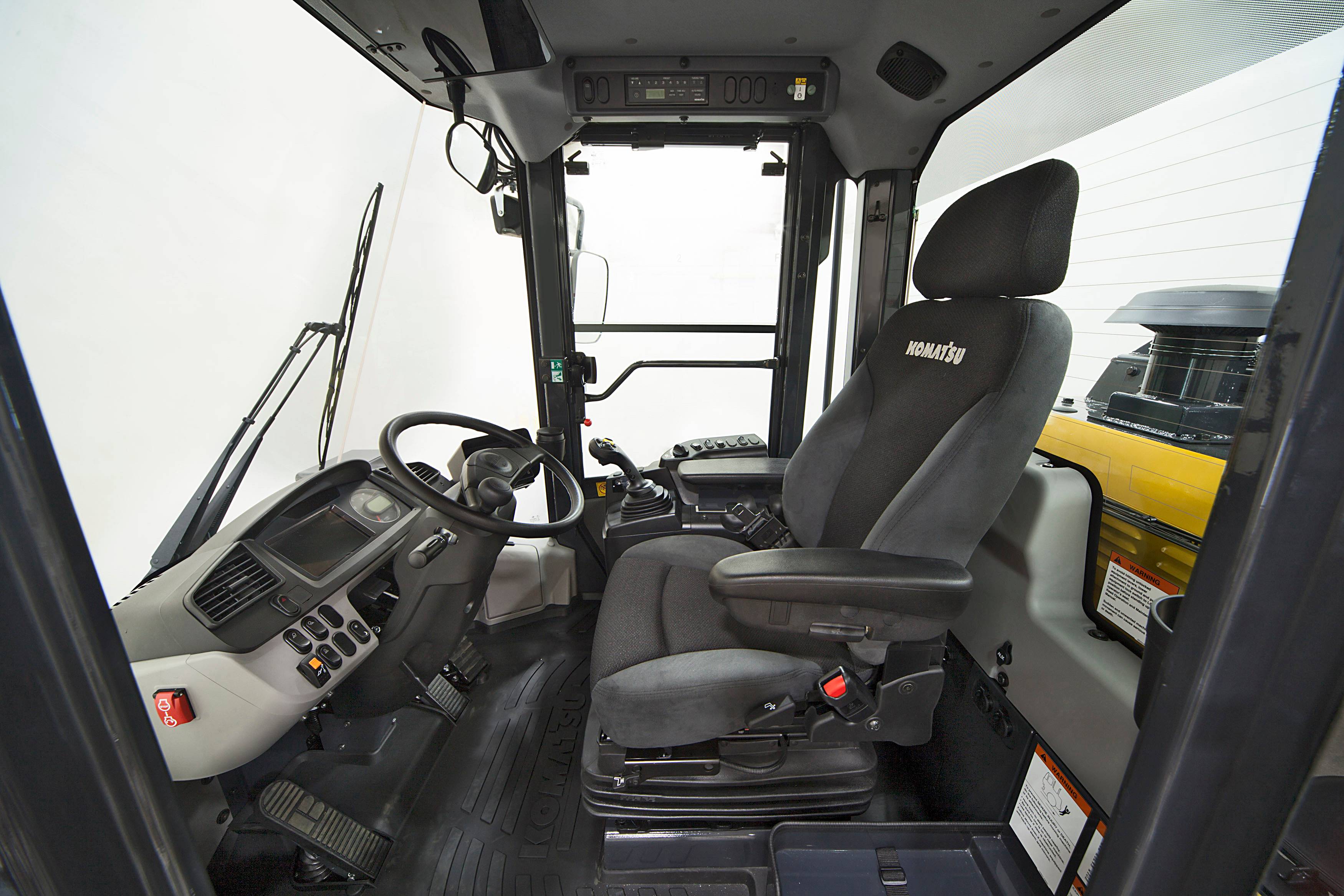

New Operator Seat

A new standard, heated, air-suspension seat provides enhanced support on rough roads and dampens machine vibrations, providing a more comfortable ride for the operator. The angle of the armrest is fully adjustable for optimum operator comfort. A secondary F-N-R switch is incorporated into the standard multi-function mono lever.
