SPECIFICATIONS

EXPAND ALL COLLAPSE ALL
  • Engine

    Model Komatsu SAA6D107LE-1
    Type Water-cooled, 4-cycle, direct injection
    Aspiration Turbocharged, aftercooled
    Number of Cylinders 6
    Bore x Stroke 107 mm x 124 mm
    Piston Displacement 6.69 ltr
    Horsepower, Gross - SAE J1995 129 kW / 147 HP
    Horsepower, Net - ISO 9249 / SAE J1349 123 kW / 164 HP
    Rated RPM 2000
    Fan drive method Mechanical
    Emissions certification EPA Tier 3
  • Hydraulic System

    Type HydrauMind System
    Number of selectable working modes 6
    Main pump type Variable displacement piston type
    Pump for Boom, arm, bucket, swing, and travel circuits
    Maximum flow 439 ltr/min
    Hydraulic Motors
    Travel 2 x axial piston motor with parking brake
    Swing 1 x axial piston motor with swing holding brake
    Relief Valve Setting
    Implement circuits 380 kgf/cm3
    Travel circuit 380 kgf/cm3
    Swing circuit 295 kgf/cm3
    Pilot circuit 33 kgf/cm3
    Hydraulic Cylinders Bore x Stroke x Rod diameter
    Boom 2-130 mm x 1335 mm x 90 mm
    Arm 1-145 mm x 1635 mm x 100 mm
    Bucket 1-130 mm x 1020 mm x 90 mm



  • Drives and Brakes

    Steering control Two levers with pedals
    Drive method Fully hydrostatic
    Maximum drawbar pull 202 kN 20570 kgf
    Gradeability 70 %
    Travel speeds 3.1 / 5.5 km/h
    Service brake Hydraulic lock
    Parking brake Mechanical disc brake
  • Swing System

    Driven by Hydrostatic
    Swing reduction Planetary gear
    Swing circle lubrication Grease-bathed
    Service brake Hydraulic lock
    Swing lock Mechanical disc brake
    Swing speed 11.7 rpm
  • Undercarriage

    Center frame X-frame leg
    Track frame Box-bathed
    Track type Sealed track
    Track adjuster Hydraulic
    Number of shoes (each side) 47 - 51
    Number of carrier rollers (each side) 2
    Number of track rollers (each side) 8 - 10
    Shoe size & type 600 mm triple grouser
  • Coolant & Lubricant capacity

    Fuel tank 400 ltr
    Coolant 19.9 ltr
    Engine 23.1 ltr
    Final drive, each side 5.0 ltr
    Swing drive 7.2 ltr
    Hydraulic tank 135 ltr
    DEF tank None
  • Weights

    Operating weight
    PC220-8M0 24,110 - 24,440 kg
    PC220LC-8M0 24,860 - 25,190 kg
  • Operation

    Boom size (m) & type 5.85 standard
    Arm size (m) & type 3.045 standard
    Arm crowd force - ISO (kgf) 13200
    Bucket crowd force - ISO (kgf) 17500
    Digging depth - maximum (mm) 6920
    Digging reach - maximum (mm) 10180
    Maximum reach @ ground level 10020
    Swing radius (mm) 2940
  • Dimensions (transport position)

      PC220-8M0 PC220LC-8M0
    Length, overall (mm) 9885 9885
    Track length on ground (mm) 3460 3845
    Track gauge (mm) 2380 2580
    Overall track width (mm) 2980 3180
    Overall height (mm) 3185 3185
    Ground clearance (mm) 440 440

PC220/LC-8M0 Excavators

Now powered by Komatsu’s low emission Tier 3-compliant engine technology, our 25 tonne PC220/LC-8M0 is an ideal machine for the civil construction, rental and related industries, capable of a range of earthmoving, excavating and general construction applications. As with all our construction excavators, key components are designed and manufactured by Komatsu to work together in an integrated package. And it comes standard with our KOMTRAX remote monitoring and location system, backed by our NZ-wide service and support network.



  • 123 kW / 164 HP
    ENGINE POWER
  • 25,190 kg
    OPERATING WEIGHT
  • 1.08 m³
    BUCKET CAPACITY

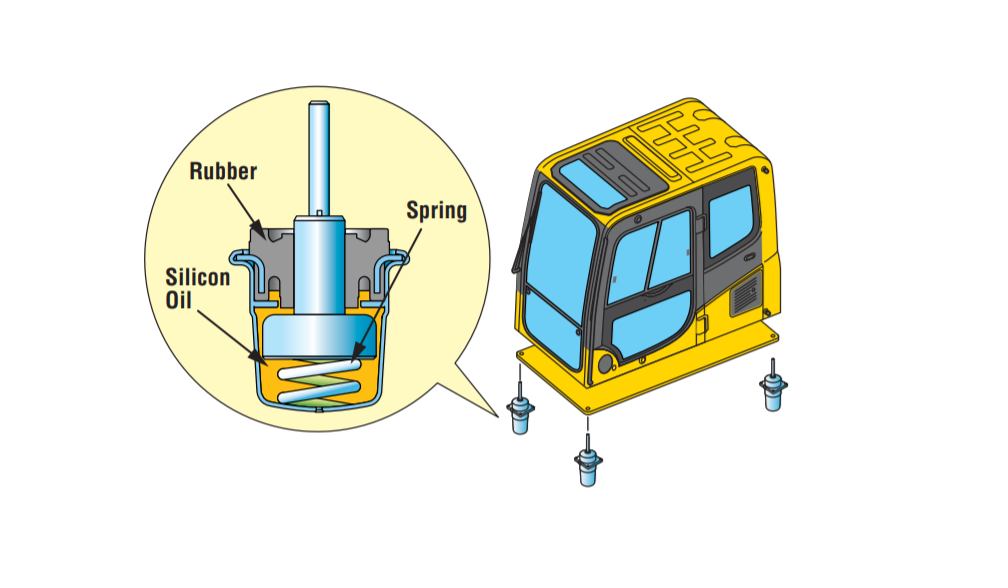

Comfortable Ride with Viscous Cab Mount

PC220/LC-8M0 uses viscous damper mounting for cab that incorporates longer stroke and the addition of spring. The new cab damper mounting combined with high rigidity deck aids vibration reduction at operator seat.
