SPECIFICATIONS

EXPAND ALL COLLAPSE ALL

  • Engine

  • Hydraulic System

  • Drives system

    Travel gear Two levers with pedals
    Gradeability 70%, 35°
    Maximum travel speed 2.7 kph
    Parking brakes Oil disc brakes

  • Swing System

    Swing gear   2 x Planetary gear
    Swing circle lubrication   Grease-bathed
    Swing holding brakes   Oil disc brakes
    Swing speed   4.8 rpm

  • Undercarriage

  • Coolant & Lubricant capacity

    Fuel tank 3 400 L
    Radiator 240 L
    Engine 128 L
    Travel gear, each side 85 L
    Swing drives 2 x 30 L
    Hydraulic tank 1 300 L
    Power Take Off (PTO) 40 L

  • Weights

    Backhoe:
    Operating weight, including 8 700 mm boom, 3 900 mm arm, SAE J 296 heaped 12.0 m3 general purpose backhoe bucket lubricant, coolant, full fuel tank, and the standard equipment.

    Shoes Operating
    Weight    		 Ground Pressure
    (ISO 16754)
    Double grouser
    810 mm    		 201 930 kg 192.1 kPa 1.96 kg/cm2
    Triple grouser
    1 010 mm    		 206 050 kg 157.2 kPa 1.60 kg/cm2

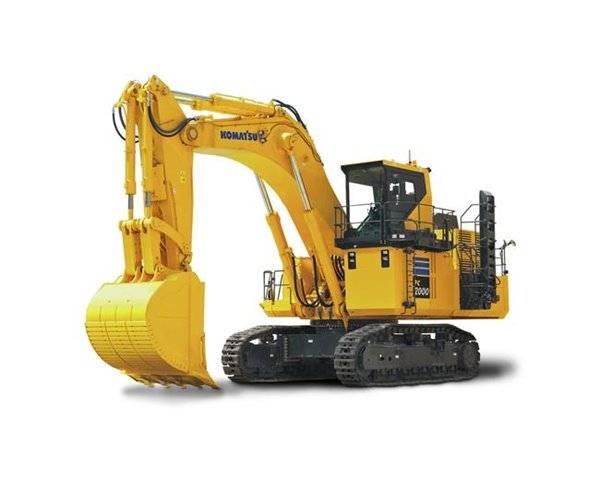

PC2000-11 Excavators

The PC2000-11 can load more trucks per shift. Increased engine power, a more efficient hydraulic system and new engine-pump control logic provide faster cycle times and improved multifunction performance.*

*Compared to previous models.

  • 780 kW / 1,065 HP
    ENGINE POWER
  • 206,050 kg
    OPERATING WEIGHT
  • 13.7 m³
    BUCKET CAPACITY

PC2000-11 Excavators

Current Offers

High production

Greater productivity

High production fuels an eight percent decrease in production costs ($/ton) compared to previous models. The new “Power Plus” operating mode delivers nine percent more engine horsepower. New engine-pump control logic and a more efficient hydraulic system.

Enhanced accessibility

The 45-degree, hydraulically actuated boarding ladder for operators offer better accessibility and stability when boarding. Platforms and handrails make scheduled maintenance easier.

Operator comfort

Heated air suspension seat and suspension-mounted controls deliver operator comfort. Noise suppression provides low, cabin noise levels of 64.1 dbA. New, large-capacity air conditioning system. High resolution 7-inch monitor with rearview camera. Trainer seat standard.
