SPECIFICATIONS

EXPAND ALL COLLAPSE ALL
  • Engine

    Model Komatsu 3D88E-7
    Type Water-cooled, 4-cycle, direct injection
    Aspiration Cooled EGR
    Number of Cylinders 3
    Bore x Stroke 88 mm x 90 mm
    Piston Displacement 1.642 ltr
    Horsepower, Gross - SAE J1995 18.2 kW
    Horsepower, Net - ISO 9249 / SAE J1349 17.4 kW
    Rated RPM 2200
    Fan drive method Mechanical
    Emissions certification EPA Tier 4 Final
  • Hydraulic System

    Type HydrauMind System
    Number of selectable working modes 2
    Main pump type Variable displacement, axial piston
    Pump for Boom, arm, bucket, and travel circuits
    Maximum flow 69.8 ltr/min
    Hydraulic Motors
    Travel 2 x axial piston motors with parking brake
    Swing 1 x axial piston motor with swing holding brake
    Relief Valve Setting
    Implement circuits 265 kgf/cm3
    Travel circuit 265 kgf/cm3
    Swing circuit 220 kgf/cm3
    Pilot circuit 32 kgf/cm3
    Hydraulic Cylinders Bore x Stroke x Rod diameter
    Boom 1-80 mm x 550 mm x 45 mm
    Arm 1-75 mm x 495 mm x 45 mm
    Bucket 1-65 mm x 490 mm x 40 mm



  • Drives and Brakes

    Steering control Two levers with pedals
    Drive method Fully hydrostatic
    Maximum drawbar pull 33.2 kN 3400 kgf
    Gradeability 30 %
    Travel speeds 2.6 / 4.6 km/h
    Service brake Hydraulic lock
    Parking brake Mechanical disc brake
  • Swing System

    Driven by Hydrostatic
    Swing reduction Planetary gear
    Swing circle lubrication Grease-bathed
    Service brake Hydraulic lock
    Swing lock Mechanical disc brake
    Swing speed 9 rpm
  • Undercarriage

    Center frame X-frame leg
    Track frame Box-section
    Track type Sealed track
    Track adjuster Hydraulic
    Number of shoes (each side) 44
    Number of carrier rollers (each side) 1
    Number of track rollers (each side) 4
  • Coolant & Lubricant capacity

    Fuel tank 40.6 ltr
    Coolant 3.3 ltr
    Engine 6.7 ltr
    Final drive, each side 0.6 ltr
    Hydraulic tank 34 ltr
    DEF tank None
  • Weights

    Operating weight 3,150 - 3,300 kg

PC30MR-5 Excavators

Now with a low-emission Tier 4 Final-compliant Komatsu engine, our 3.3 tonne PC30MR-5 is ideal for rental fleets, owner-operators, builders, plumbers, electricians and other tradies – or anyone who needs to work in confined conditions. It incorporates features of bigger Komatsu excavators, with key components designed and manufactured by Komatsu to work together in an integrated package. And it’s standard with our KOMTRAX remote monitoring and location system, backed by our NZ-wide service and support network.

  • 17.4 kW / 23 HP
    ENGINE POWER
  • 3,150 kg
    OPERATING WEIGHT
  • 0.09 m³
    BUCKET CAPACITY

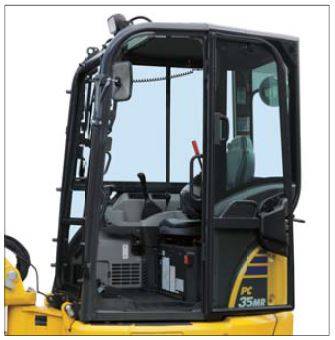

Newly designed large-sized door

Cab entrance area is increased 17% (Compared with Komatsu’s current models) by employing newly designed large-sized door.

KOMTRAX

Through the web application, a variety of search parameters are available to quickly find information about specific machines based on key factors. Moreover, KOMTRAX finds out machines with problems from your fleet and shows you through an optimal interface.

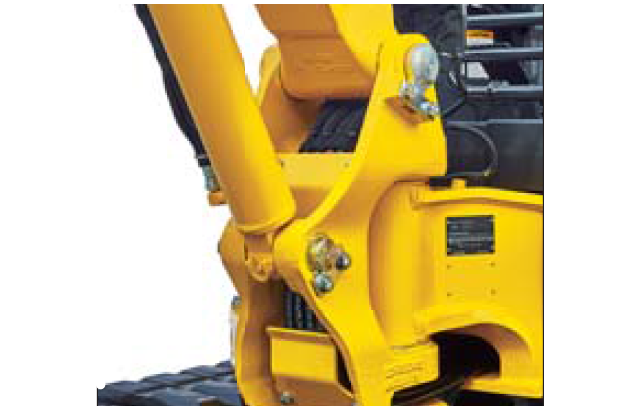

Large vertical pin and steel bushing

A large vertical pin and steel bushing are used at the boom foot for improved durability. An abrasion-resistant steel bushing further improves service life.
