SPECIFICATIONS

EXPAND ALL COLLAPSE ALL

  • Working ranges

    Height of cut16.6 m
    Radius of cut 24.2 m
    Dumping height* (door open)9.1 m
    Floor level radius16.4 m
    Tail swing radius9.9 m
    Operator eye level9.6 m

  • Capacity

    Nominal payload*59.0 mt
    Nominal dipper capacity SAE struck 26.8 - 33.6 m3
    Rated suspension load122.5 mt
    Optimum truck size (218 mt (240 st) truck shown)172 - 240 mt

  • Power requirements

    Supply voltage*4,160 or 7,200 V 3 phase, 60 Hz
    Supply voltage*5,000, 6,000 or 6,600 3 phase, 50 Hz
    Supply transformer(minimum) 2,750 kVA
    Minimum short circuit VA available at shovel22 MVA

  • Propel

  • Crowd

  • Swing

  • Hoist

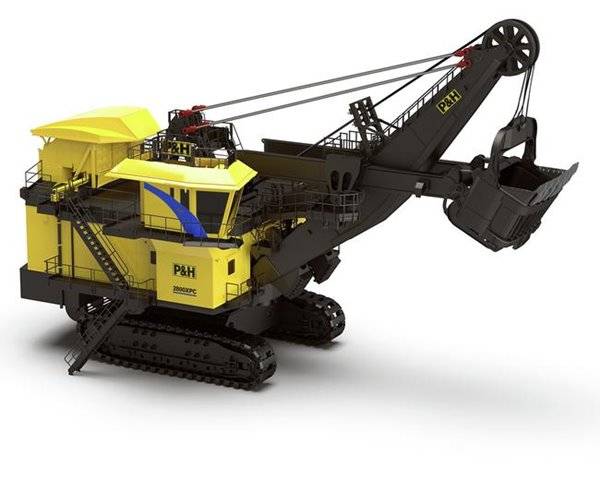

2800XPC Electric Rope Shovels

Engineered for outstanding digging power and faster cycle times, the 2800XPC electric mining shovel is intended to be the productive, reliable, low cost per tonne workhorse of your fleet. Featuring an AC electrical system designed to move materials quickly, the 2800XPC is built to give you years of dependable service even in tough environments.

2800XPC Electric Rope Shovels

Current Offers

Big machine systems in a compact package

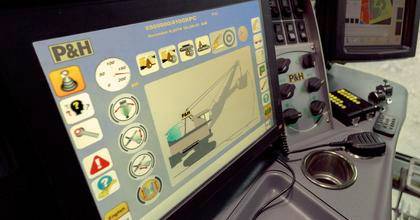

You don’t need a huge capacity shovel to get state-of-the-art components. The P&H 2800XPC incorporates the advanced Centurion electrical control system and a rugged drive — powerful, productivity-focused systems featured in much larger machines.

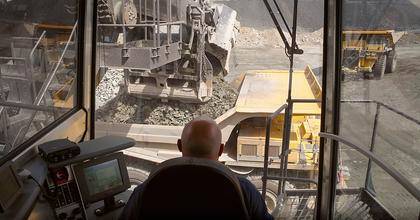

Stability throughout the dig cycle

Built to handle hard materials with a focus on penetrating the bank, the P&H twin leg handle focuses energy and cutting force by preventing any energy-wasting twisting or rotating of the dipper.

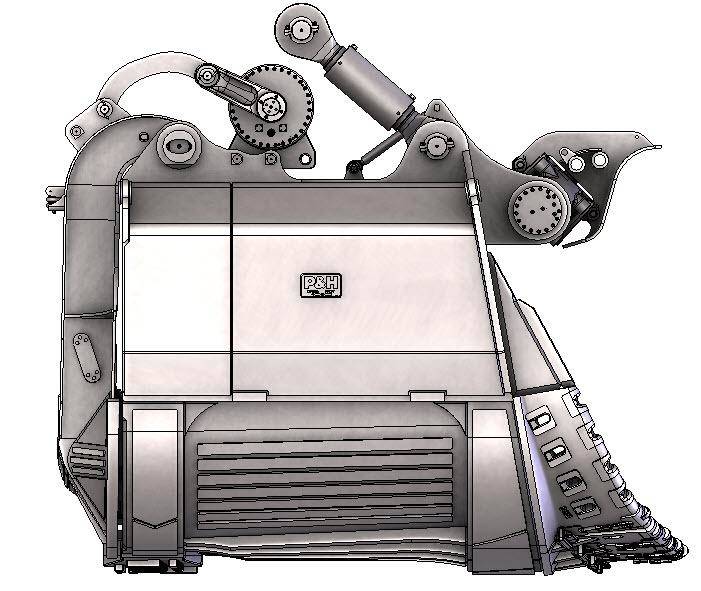

Latest dipper technology

One of the hardest working pieces on your shovel, the 2800XPC features the latest in dipper technology and offers a low maintenance latching system, optimal toe penetration digging and the ability to pass match shovels with trucks.
