SPECIFICATIONS

EXPAND ALL COLLAPSE ALL
  • Engine

    Model Komatsu SAAD107E-1
    Type 4-cycle, water-cooled, overhead valve, turbocharged diesel engine
    Aspiration Turbocharged, air to air aftercooled
    No. Cylinders 6
    Bore 107 mm
    Stroke 124 mm
    Piston Displacement 6.69 ltr
    Horsepower, Gross 149 kW / 200 HP
    Horsepower, Net 140 kW / 187 HP
    Rated RPM 2050
    Emissions certified EPA Tier 3



  • Hydraulic System

    Type HydrauMind system
    Main pump type Variable-displacement piston pumps
    Maximum flow 2 x 230 ltr/min
    Maximum pressure 380 kg/cm2
    Maximum travel speed 3 km/h
    System oil flow
    Travel 2 x 160 ltr/min
    Crusher 230 ltr/min
    Feeder 58 ltr/min
    Conveyor 38 ltr/min
    Option 28 ltr/min
  • Operating weight

    Operating weight 3,400 kg
  • Undercarriage

    Seal of track Sealed track
    Track adjuster Hydraulic
    Number of shoes (each side) 45
    Number of carrier rollers (each side) 2
    Number of track rollers (each side) 5
  • Crusher

    Jaw Komatsu KCJ4222
    Inlet size 1065 mm x 550 mm
    Discharge setting (O.S.S) 50 mm to 150 mm
    Rotating speed (variable) 170 - 330 rpm
  • Grizzly feeder

    Frequency Maximum 1100 cpm
    Size 1000 mm x 3070 mm
    Amplitude (not loaded, all amplitude) 8.0 mm
    Drive type Direct drive with hydraulic motor
  • Coolant & Lubricant capacity

    Fuel tank 400 ltr
    Radiator 28 ltr
    Engine 26 ltr
    Final drive, each side 4.5 ltr
    Hydraulic system 209 ltr

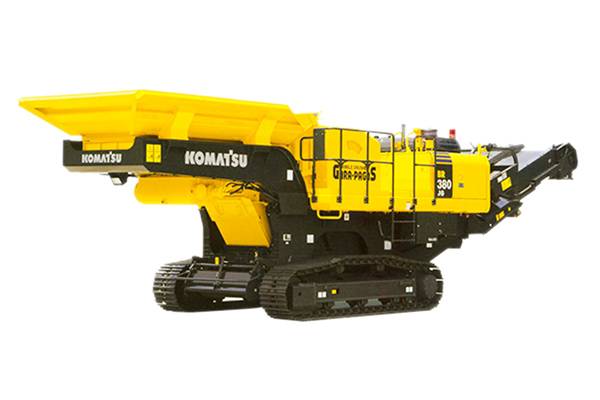

BR380JG-1E0 Crushers

With a throughput range of 50-240 tonnes/hour (depending on material and sizings) our BR380JG-1E0 features the same innovative technology as used on our market leading excavators and loaders. It also incorporates a unique hydraulic crusher protection system, reducing downtime and operating costs. As with all our products, key components are designed and manufactured by Komatsu to work together in an integrated package. And it comes standard with our KOMTRAX remote monitoring and location system, backed by our NZ-wide service and support network.

  • 140 kW / 187 HP
    ENGINE POWER
  • 34,000 kg
    OPERATING WEIGHT
  • 1065 x 550 mm
    JAW SIZE

Eco-Friendly Engine

Equipped with the SAA6D107E-1 turbocharged after-cooled diesel engine, this new mobile crusher has a nominal output as high as 140 kW / 187 HP. The Tier 3 emissions certified "ecot3" engine greatly reduces NOx emissions with no reduction in performance

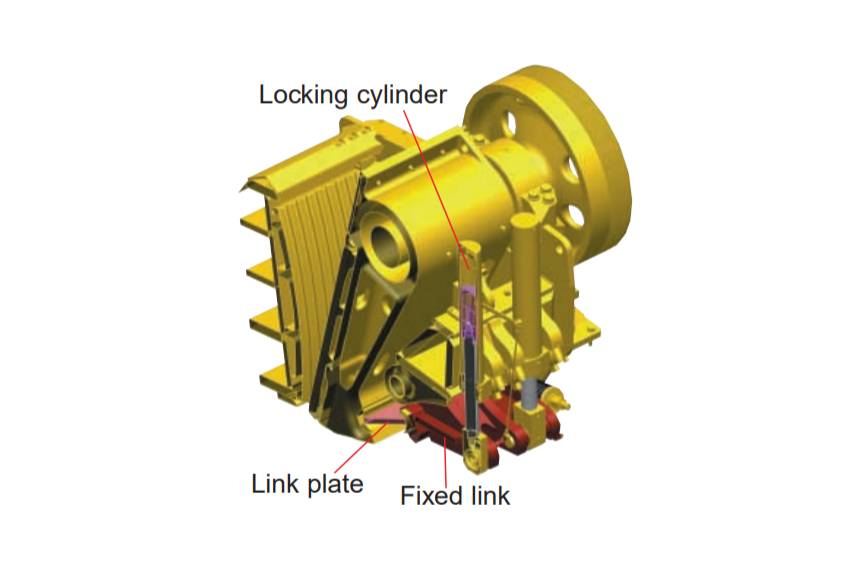

High Performance Jaw

The KCJ4222 large-capacity jaw crusher guarantees maximum crushing capacity in this class along with ease of maintenance. In addition, Komatsu's locking cylinder mechanism allows you to change the discharge clearance with a simple one-touch adjustment and also facilitates the removal of clogged foreign material from the discharge side.

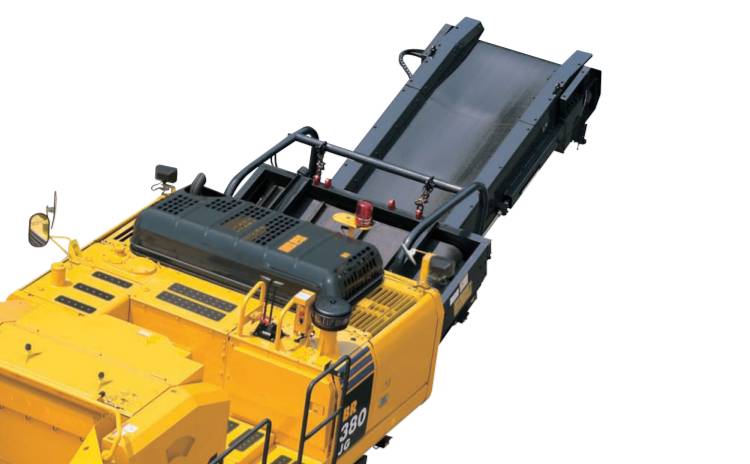

High-Speed, Large-Capacity Conveyor Belt

The high discharge height of 2800 mm makes it easy to configure a system with stock pile conveyor and screens. With its width of 1050 mm and a belt speed of 120 m/min, the belt conveyor has a high volume capacity. In addition, the conveyor reverse mode is provided to facilitate the removal of jammed foreign material.
