SPECIFICATIONS

EXPAND ALL COLLAPSE ALL
  • Working ranges

  • Capacity

  • Power requirements

  • Propel

  • Crowd

  • Swing

  • Adaptive controls technology

  • Hoist

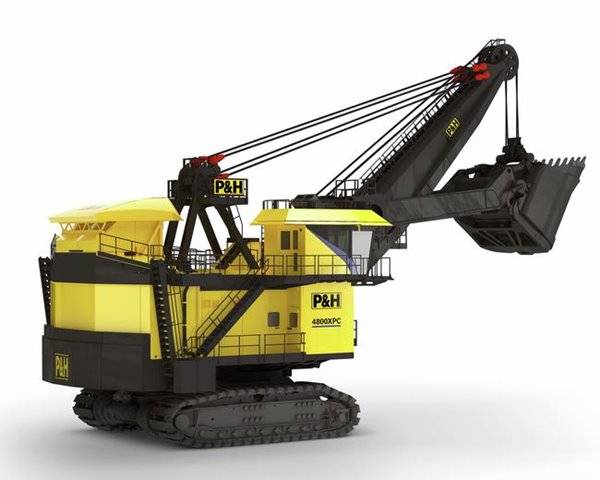

4800XPC Electric Rope Shovels

Built for tough environments, the 4800XPC ultra-class three-pass-loading-tool delivers consistent uptime and high cutting force. Engineered for increased digging power and faster cycle times, utilising the latest mining technology.

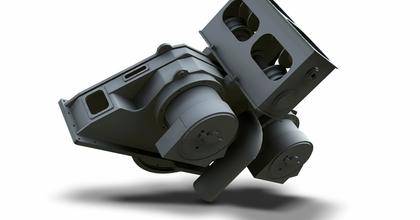

Direct Drive Crowd

The low inertia design of the responsive, dynamic crowd design system allows fine motion control by shovel operators, high crowd forces to assist with toe penetration, and reduced damage associated with abuse events.

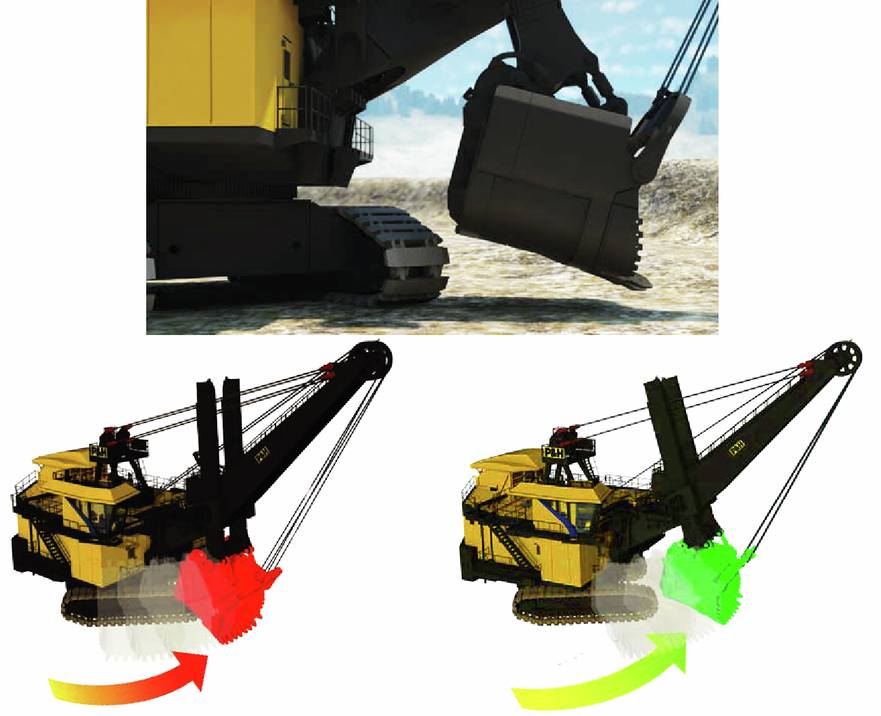

Protects tracks and undercarriage

The P&H Track Shield helps protect your machine’s tracks and undercarriage from dipper strikes. It monitors dipper movement and position to help you predict imminent collisions and takes appropriate actions to mitigate damage to dipper or tracks.

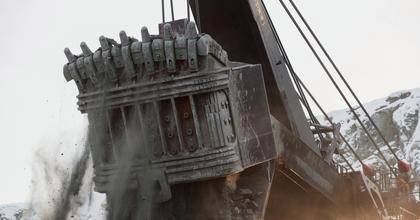

Latest dipper technology

The dipper is one of the hardest working pieces on your shovel. The 4100/4800 features the latest in dipper technology: a low-maintenance latching system, optimal toe penetration and the ability to pass match shovels with trucks.
