SPECIFICATIONS

EXPAND ALL COLLAPSE ALL
  • Engine

    Model Komatsu SAAD114E-6
    Type 4-cycle, water-cooled, direct injection
    Aspiration Turbocharged, after-cooled, cooled EGR
    Number of Cylinders 6
    bore x stroke 114 mm x 144.5 mm
    Horsepower, Gross - SAE J1995 164 kW / 220 HP
    Horsepower, Net - ISO 9249 / SAE J1349 162 kW / 217 HP
    Rated RPM 1950
    Piston displacement 8.85 ltr
    Fan drive type Hydraulic
    Lubrication system Gear pump
    Emissions certification EPA Tier 4
  • Hydraulic System

    Type Closed-centre load sensing system
    Maximum pump flow 248 ltr/min
    Relief valve setting - For implement 285 kg/cm2
    Hydraulic cylinder No. of cylinders x bore
    Blade lift 2 x 85-90 mm
    Blade tilt 125-150  mm
    Blade angle 2 x 110 mm
    Ripper lift 125 mm
    Pitch angle 38o- 52o
  • Torqflow transmission

    Komatsu TORQFLOW transmission consists of a water-cooled, 3-element, 1-stage, 2-phase, torque converter with lockup clutch, and a planetary gear, multiple-disc clutch transmission which is electronically controlled, hydraulically actuated and force lubricated for optimum heat dissipation. Shift lock lever and neutral safety switch.

    Travel speeds
    Forward 0 - 11.3 km/h
    Reverse 0 - 13.6 km/h
  • Final drives

    Double reduction final drive of spur and planetary gear sets to increase tractive effort and reduce gear tooth stresses for long final drive life. Segmented sprocket teeth are bolt-on for easy replacement.

  • Steering system

    Type Hydrostatic Steering system
    Steering control PCCS-lever
    Minimum turning radius 1.9 - 2.1 m
  • Undercarriage

    Suspension Oscillating equaliser bar and forward pivot shaft
    Track roller frame Monocoque, large section, durable construction
    Tracks PLUS link assebmly
    Number of track rollers (each side) 7
    Number of shoes (each side) 42
    Number of carrier rollers 2
    Shoe type Single grouser
    Shoe width 610 - 760 mm
  • Coolant & Lubricant capacity

    Coolant 49 ltr
    Fuel tank 415 ltr
    Engine oil 30.5 ltr
    Final drive (each side) 16.5-22 ltr
    Torque converter, transmission, bevel gear, and steering system 48 ltr
    DEF tank 23.5 ltr
  • Weights

    Operating weight 20,740 - 24,293 kg

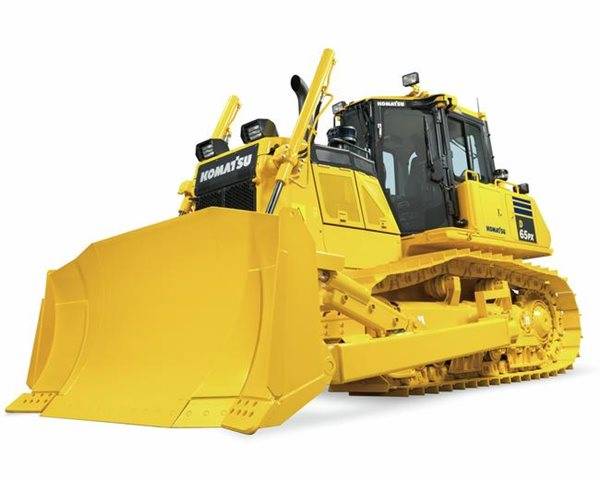

D65EXi/PXi-18 Dozers

Komatsu Rental’s 23 tonne class D65EXi/PXi-18 dozer gives the opportunity to hire Komatsu’s unique intelligent Machine Control (iMC) technology, allowing it to carry out both bulk and final trim dozing in fully automatic mode from start to finish, delivering final grade performance and accuracy. Available to rent in both standard and low-ground-pressure versions, it is powered by a new technology Komatsu engine for reduced fuel consumption and increased performance.

  • 162 kW / 217 HP
    ENGINE POWER
  • 23,373 kg
    OPERATING WEIGHT
  • 5.6 m³
    BLADE CAPACITY
