SPECIFICATIONS

EXPAND ALL COLLAPSE ALL
  • Engine

    Model Komatsu SAA6D107E-1
    Type Four-cycle, water-cooled, direct injection
    Aspiration Turbo-charged, after-cooled
    Number of cylinders 6
    Bore x stroke 107 mm x 124 mm
    Displacement 6.69 ltr
    Horsepower, Gross - SAE J1995 104 kW / 140 HP
    Horsepower, Net - ISO 9249 / SAE J1349 103 kW / 138 HP
    Rated RPM 2000
    Fan drive method Hydraulic
    Emissions certification EPA Tier 3
  • Operation / Application

    Standard bucket capacity SAE 2.3 m3
    Bucket description Stockpile bucket, pin on
    Bucket width 2550 mm
    Dump clearance at 45° dump angle 2945 mm
    Dump reach at 45° dump angle 945 mm
    Static tipping load, straight 9320 kg
    Static tipping load, full turn 8075 kg
    Breakout force

    131 kN

    13380 kgf

  • Axles and Final Drives

    Drive system Four-wheel drive
    Front Fixed, semi-floating
    Rear Centre-pin support, semi-floating, 24° total oscillation
    Reduction gear Spiral bevel gear
    Differential gear Torque proportioning
    Final reduction gear Planetary gear, single reduction
  • Brakes

    Service brakes Hydraulically actuated, wet disc brakes actuate on four wheels
    Parking brake Wet, multi-disc brake on transfer output shaft
    Secondary brake Parking brake is commonly used
  • Hydraulic System

    Steering System:

    Hydraulic pump Gear type pump
    Capacity (at rated rpm) 110 ltr/min
    Relief valve setting

    18.6 MPa

    190 kgf/cm2

    Hydraulic Cylinders:
    Type Double-acting, piston type
    Number of cylinders 2
    Bore x stroke 70 mm x 453 mm





    Loader Control:

    Hydraulic pump Gear type pump
    Capacity 78 ltr/min
    Relief valve setting

    20.6 MPa

    210 kgf/cm2

    Hydraulic Cylinders:
    Type Double-acting, piston type
    Number of boom cylinders 2
    Boom cylinder, bore x stroke 130 mm x 717 mm
    Number of bucket cylinders 1
    Bucket cylinder, bore x stroke 170 mm x 480 mm
    Control valve 3-spool type
    Control Positions:
    Boom Raise, hold, lower, and float
    Bucket Tilt-back, hold, and dump
    Hydraulic Cycle Time: (rated load in bucket)
    Raise 5.7 sec
    Dump 1.6 sec
    Lower (empty) 3.3 sec
  • Service Refill Capacities

    Cooling system 22 ltr
    Fuel tank 186 ltr
    Engine 23 ltr
    Hydraulic system 67 ltr
    Axle front 18 ltr
    Axle rear 18 ltr
    Transfer case 5 ltr
  • Steering System

    Type Articulated type, fully hydraulic power steering
    Steering angle 38° each direction (40° to max end stop)
    Minimum turning radius at centre of outside tyre 5175 mm
  • Transmission

    Transmission Hydrostatic, 1 pump, 2 motors with speed range select
    Travel speed Forward & Reverse
    1st 4.0 - 13.0 km/h
    2nd 13.0 km/h
    3rd 18.0 km/h
    4th 38.0 km/h
    Measured with 20.5-25 tyres
  • Tyres

    Standard tyres 20.5-25-16PR, L2 tubeless
  • Weights

    Operating weight 11,950 - 12,690 kg

WA250PZ-6 Wheel Loaders

With bucket capacities from 1.9-2.7 m3, our hydrostatic drive WA250PZ-6 features Komatsu’s PZ parallel-lift arm system and hydrostatic drive, for maximum versatility and productivity across loading, handling and lifting applications. As with all our wheel loaders, key components are designed and manufactured by Komatsu to work together in an integrated package. And it comes standard with our KOMTRAX remote monitoring and location system, backed by our NZ-wide service and support network.

  • 103 kW / 138 HP
    ENGINE POWER
  • 11,950 kg
    OPERATING WEIGHT
  • 2.3 m³
    BUCKET CAPACITY

High Productivity and Low Fuel Consumption

A powerful SAA6D107E-1 turbocharged air-to-air aftercooled diesel engine provides a net output of 103 kW / 138 HP for the WA250PZ-6. This engine is EPA Tier 3 emissions certified, without sacrificing power or machine productivity. The high-torque engine and Hydrostatic Transmission (HST) with maximum efficiency in the low-speed range provide low fuel consumption.

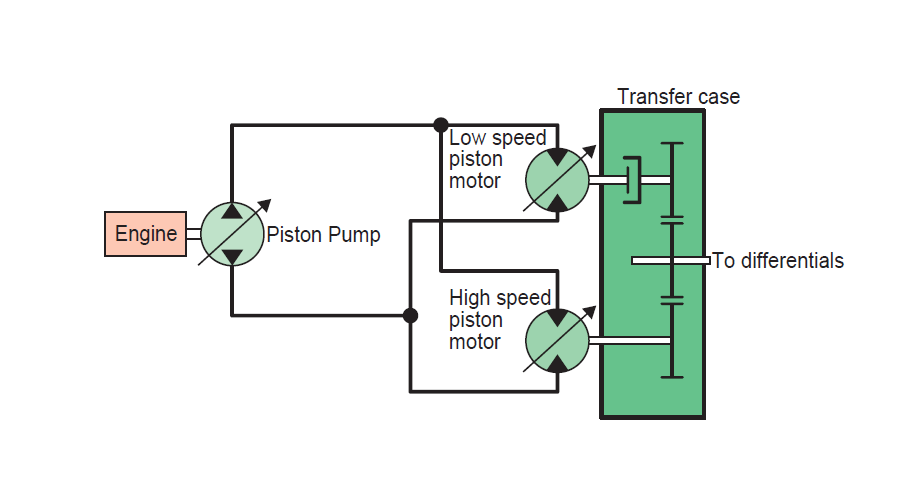

Electronically-Controlled HST

The electronically-controlled HST consists of a 1-pump, 2-motor system. This system allows for high-efficiency and high tractive effort. The HST provides quick travel response and aggressive drive into the pile. The variable displacement system automatically adjusts to the tractive effort demand to provide maximum power and efficiency

Easy Maintenance

The operator can open and close each gull-wing type engine side door easily with the assistance of a gas spring to perform daily service checks from the ground.
