SPECIFICATIONS

EXPAND ALL COLLAPSE ALL
  • Engine

    Model SAA6D107E-3*
    Type Water-cooled, 4-cycle, direct injection
    Aspiration Turbocharged, aftercooled, cooled EGR
    No. Cylinders 6
    Bore 107mm
    Stroke 124mm
    Piston Displacement 6.69 ltr
    Horsepower, Gross 165 kW / 221 HP
    Horsepower, Net 163 kW / 218 HP
    GROSS HORSEPOWER (MANUAL MODE):
    P-mode
    Gear 1-3 @ 2000 rpm 136 kW / 183 HP
    Gear 4-6 @ 2000 rpm 151 kW / 203 HP
    Gear 7-8 @ 2100 rpm 165 kW / 221 HP
    E-mode
    Gear 1-6 @ 2000 rpm 136 kW / 183 HP
    Gear 7-8 @ 2000 rpm 165 kW / 221 HP
    NET HORSEPOWER (MANUAL MODE):
    P-mode
    Gear 1-3 @ 2000 rpm 136 kW / 183 HP
    Gear 4-6 @ 2000 rpm 151 kW / 203 HP
    Gear 7-8 @ 2100 rpm 165 kW / 221 HP
    E-mode
    Gear 1-6 @ 2000 rpm 134 kW / 180 HP
    Gear 7-8 @ 2000 rpm 163 kW 218 HP
    Rated RPM 1450 rpm
    Fan Speed max 1450 rpm
    Emissions Certification EPA Tier 4 Final



  • Blade Range

    MOLDBOARD SIDE SHIFT:
    Right 820 mm
    Left 820 mm
    MAXIMUM SHOULDER REACH OUTSIDE REAR TYRES (FRAME STRAIGHT):
    Right 2000 mm
    Left 2000 mm
    Maximum lift above ground 480 mm
    Maximum cutting depth 615 mm
    Maximum blade angle, right or left 90 degrees
    Blade tip angle 40° forward / 5° backward



  • Brakes

    Service brake Foot operated, sealed oil brakes, hydraulically actuated on four tandem wheels.
    Parking brake Manually actuated, spring applied, hydraulically released caliper.



  • Capacities (Refilling)

    Fuel tank 390 ltr
    Cooling system 30 ltr
    Crank case 23 ltr
    Transmission 45 ltr
    Final drive 17 ltr
    Tandem housing (each) 57 ltr
    Hydraulic system 69 ltr
    Circle reverse housing 7 ltr



  • Circle

    Single piece rolled ring forging. Six circle support shoes with replaceable wear surface. Circle teeth hardened on front 180° of circle.
    Diametre (outside) 1530 mm
    Circle reversing control hydraulic rotation 360°



  • Drawbar

    A-shaped, u-section press formed and welded construction for maximum strength with a replaceable drawbar ball.
    Drawbar frame 210 x 22 mm



  • Frame

    FRONT FRAME STRUCTURE
    Height 300 mm
    Width 300 mm
    Upper, Lower 25 mm



  • Front Axle

    Type Solid bar construction welded steel sections
    Ground clearance at pivot 620 mm
    Wheel lean angle, right or left 16°
    Oscillation, total 32°



  • Hydraulic System

    Load-sending closed centre hydraulics with variable displacement piston pump. Short stroke/ low effort direct acting control valves with preselected maximum flow setting to each function. Double acting anti-drift check valves on blade lift, tip, circle shift, articulation, and leaning wheels.
    Output (at engine rated rpm) 200 L / min
    Standby pressure 3.4 MPa 35 kg/cm2
    Maximum system pressure 20.6 MPa 210 kg/cm2



  • Instrumentation

    ELECTRIC MONITORING SYSTEM WITH DIAGNOSTICS
    Gauges / Standard Articulation, engine coolant temperature, fuel level, speed meter, transmission shift indicator, engine tachometre, torque converter oil temperature.
    Warning lights / Indicator Battery charge, brake oil pressure, blade float, brake oil pressure, inching temperature, directional indicator, engine oil pressure, hydraulic oil temperature, heater signal, lift arm lock, parking brake, differential lock, torque converter oil, temperature, ecology, P mode, fan reverse, rpm set, high beam, working lights.



  • Moldboard

    Hydraulic power shift fabricated from high tensile steel. Includes replaceable metal wear inserts, cutting edge and end bits. Cutting edge and end bits are hardened.
    Dimensions 4320 x 660 x 22 mm
    Arc radius 432 mm
    Cutting edge 152 x 16 mm
    Replaceable / Reversible side edges 156 x 16 x 456 mm
    BLADE PULL:
    Base GVW 10100 kg
    With ripper GVW 10980 kg
    BLADE DOWN PRESSURE:
    Base GVW 6940 kg
    With ripper GVW 8400 kg



  • Operating Weight

    Includes lubricants, coolant, full fuel tank
    Total 16940 kg
    On rear wheels 12620 kg
    On front Wheels 4320 kg
    WITH REAR MOUNTED RIPPER AND FRONT PUSH PLATE:
    Total 18900 kg
    On rear wheels 13820 kg
    On front wheels 5070 kg
    WITH MID-MOUNTED SCARIFIER:
    Total 17480 kg
    On rear wheels 12600 kg
    On front wheels 4870 kg



  • Rear Axle

    Alloy steel, heat treated, full floating axle with lock/unlock differential.

  • Ripper

    Maximum ripping depth 425 mm
    Riper shank holders 5
    Ripper shank holder spacing 534 mm
    Penetration force 9390 kg
    Pryout force 17600 kg
    Machine length increase, beam raised 690 mm



  • Scarifier

    MIDDLE, V-TYPE:
    Working width 1430 mm
    Maximum scarifying depth 190 mm
    Scarifier shank holders 11
    Scarifier shank holders spacing 138 mm
    REAR:
    Working width 2186 mm
    Maximum scarifying depth 165 mm
    Scarifier shank holders 9
    Scarifier shank holders spacing 167 mm



  • Steering

    Hydraulic power steering providing stopped engine steering meeting ISO 5010.
    Minimum turning radius 7.4 m
    Maximum steering range, right or left 49°
    Articulation, right or left 25°



  • Tandem Drive

    Oscillating welded box section 520 mm x 202 mm
    SIDE WALL THICKNESS:
    Inner 22 mm
    Outer 19 mm
    Wheel axle spacing 1525 mm
    Tandem oscillation 11° forward
    Tank 7 L



  • Transmissions & Torque Converter

    Full power shift transmission with integral free wheeling stator torque converter and lock-up.
    SPEEDS (AT RATED ENGINE SPEED)
    Gear Forward Reverse
    1st 3.4 km/h 4.5 km/h
    2nd 5.0 km/h 9.2 km/h
    3rd 7.0 km/h 20.3 km/h
    4th 10.2 km/h 40.3 km/h
    5th 15.4 km/h
    6th 22.3 km/h
    7th 30.6 km/h
    8th 44.3 km/h



  • Wheels, Front and Rear

    Bearings Tapered roller
    Tyres 17.5R25
    Tyre rims (demountable) 13" one-piece rims

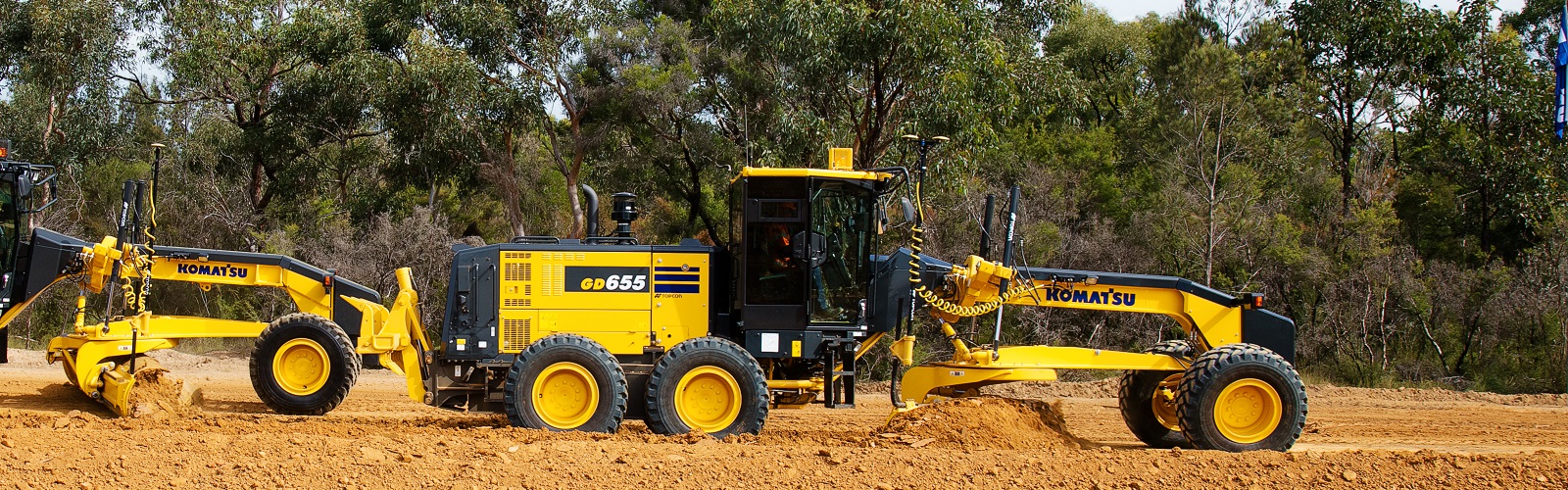

GD655-6 Motor Graders

Now with a low-emission Tier 4 Final-compliant engine, Komatsu’s GD655-6 grader includes variable horsepower (134-165 kW), as well as outstanding visibility to the blade and work areas and our unique dual mode transmission system that combines the ability to switch between full powershift and lockup automatic torque converter. As with all our graders, key components are designed and manufactured by Komatsu to work together in an integrated package. And it comes standard with our KOMTRAX remote monitoring and location system, backed by our NZ-wide service and support network.

  • 163 kW / 218 HP
    ENGINE POWER
  • 18,900 kg
    OPERATING WEIGHT
  • 4,320 mm
    BLADE WIDTH

High Performance Komatsu Engine

The GD655-6 features a new SAA6D107E-3 Tier 4 Final compliant engine and when coupled to Komatsu's Dual Mode Transmission, operators benefit from maximum control while reducing fuel consumption by up to 5% in Power Mode and 15% in Economy Mode.

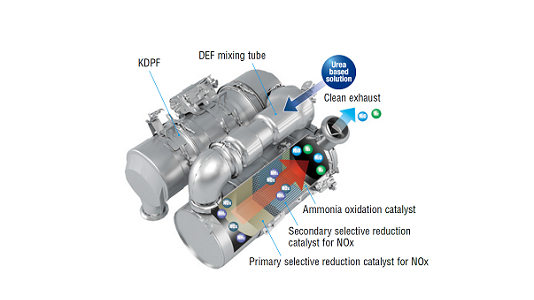

Komatsu Diesel Particulate Filter and Selective Catalytic Reduction System

The KDPF and SCR reduces particulate matter and NOx while providing automatic regeneration that does not interfere with daily operation.

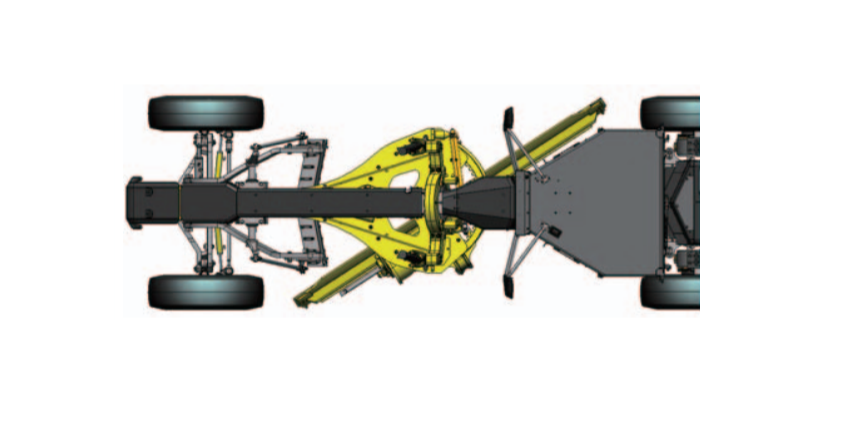

Versatile Moldboard Geometry

Komatsu graders feature a versatile moldboard geometry. Save time and money when pulling ditches by throwing the windrow to the right, not the roadway - without narrowing the road bed. It's made possible by Komatsu's extraordinary reach and aggressive blade angle.
