SPECIFICATIONS

EXPAND ALL COLLAPSE ALL
  • Diesel drive

    Model (Tier 4) Komatsu SDA12V159E-3
    Type 4-cycle, water-cooled, direct injection
    Aspiration Turbocharged and intercooled
    Number of cylinders 12
    Engines amount 1
    Rated power per engine 940 kW @ 1 800 rpm
    Governor All-speed, electronic
    DEF tank capacity (tier 4) 514 L
  • Electric drive

    Type  Asynchronous motor
    E-drive availability-11  Not available
    Engines amount
    Rated power per engine  1,223 HP @ 1,800 rpm
    Voltage  6,000 - 7,200 V
    Amperage (approx.)  96 - 80 A
    Frequency standard  60 Hz @ 1,800 rpm
    Frequency option  50 Hz @ 1,500 rpm
  • Electric system

    System  24 V
    Batteries  4 x 12 V
    Alternator  140 A
    Standard working lights (amount)  12 LED lights
    Standard service lights  Throughout the platform including emergency egresses and stairways
  • Undercarriage

    Track adjustment  Automatic hydraulic type
    Number of track shoes each side  46
    Number of top rollers each side
    Number of bottom rollers each side
  • Travel and brake system

    Gradeability  Up to 57%
    Travel speed (max)  2.4 kph
    Service brake  Hydraulic brake
    Parking brake  Multiple brake
  • Swing System

  • Environment

    Hand-lever (ISO 5349-1)  Lower than 2.5 m/s2
    Whole body vibration and shock (ISO 2631-1)  Below 0.5 m/s2
    Greenhouse gas  HFC-134a (GWP 1430)
    PC3000-11 D quantity of gas  3.7 kg
    PC3000-11 D CO2 equivalent  5.3 t
    PC3000-11 E quantity of gas  4.9 kg
    PC3000-11 E CO2 equivalent  7.0 t
  • Hydraulic system

    Description
    The power train consists of one main drive. Diesel or electric motor can be supplied. One gearbox drives three identical main pumps which draw hydraulic oil from an unpressurised hydraulic tank. Open circuit hydraulics provide maximum cooling and filtering efficiency.

    Main hydraulic pumps  Bosch Rexroth
    Main hydraulic pumps  2 730 L/min
    Relief valve setting  310 bar
    Swing flow rate  800 L/min
    High pressure screens  200 microns

    Flow description
    Full flow return line filters 3 x 10 microns and leakage line filter 3 microns all with monitored 200 microns by pass filters. The three-circuit system features a load limiting governor with oil delivery summation to the working circuits and incorporates pressure cut-off control. Hydropilot prioritises hydraulic flow giving smooth hydraulic response, simple hydraulic system layout, and a reduced number of components

  • Automatic lubrication system

    Two hydraulically powered Lincoln single line automatic lubrication systems are provided as standard, complete with time and volume variable controls. The central lube grease system is supplied from a refillable 53 gal barrel. A second, identical system supplies open gear lubricant to the swing ring teeth through a lube pinion. Replenishment of the barrels is through the service arm.

  • Capacities

    Hydraulic oil tank  2 670 L
    Hydraulic system  4 400 L
    Fuel  4 500 L
    Engine coolant  254 L
    Engine oil  190 L
    Lubrication system (total)  400 L
  • Operator cab

    Damping pads (amount)  Enclosed steel cab mounted on viscous pads
    AC System  Air-condition unit
    Suspension of seat  Full suspension operator seat with belt
    Heating of seat  Electrically heated
    Seat belt  Lap seat belt
    Adjustments of seat  Multiple adjustments
    Joystick controls  Joysticks and controls are hydraulic
    Foot controls  Electronic Pedals, foot control for shovel clam, crawler and swing brake Hydraulic pilot control
    Radio version  AM-FM radio with MP3 ready CD player and AUX in
    Windshield washers  2 synchronised windshield wash wiper
    Windshield washer speed  Two speeds and intermittent operation
    Additional mirrors  2 heated rear mirrors
    Sun blinds  External metal sun blinds on side window
    Roller blinds  Internal roller blinds on all windows, except rear door
    Sliding window  Left hand, escape window
    Window tinting  Parsol green
    Penetration proof windows  Impact resistant front window (21 mm and tolerances)
    Walkway  Walkway around the cab
    Engineering standards  ISO 3449, ISO 6394, ISO 10263-4 TL: EN474-1, EN 474-5, DIN 15018, BR2-S DIN EN 1063, ECE R43, ISO 10262
  • Komtrax Plus

    The Komtrax Plus monitoring system is designed for Komatsu mining equipment to provide real time and stored information about the operating status of the machine. Fault messages are immediately available to the operator via a digital display and in the event of critical malfunctions the engine is also shut down. The digital storage provides failure summary and analysis, which can be down loaded by laptop computer. This data will assist in predicting or reduction downtime. Optionally available is Orbcomm satellite transmission (check for availability in your territory).

    Version  Komtrax Plus 2
    Argus PLM ready  Yes

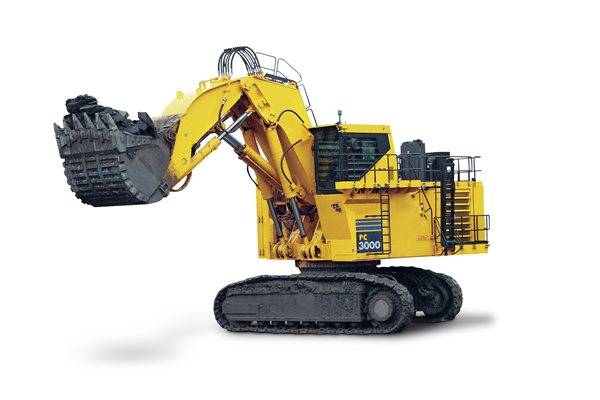

PC3000-11 Excavators

Even in confined work sites, you can maintain high production. The PC3000 is a powerful, versatile machine with advanced technology and a 16m3 shovel and 15m3 backhoe capacity, and the reach to fill 85-165 st trucks. Key components are designed and manufactured by Komatsu to work together in an integrated package. And it comes standard with our Komtrax Plus remote monitoring and location system, backed by our New Zealand-wide service and support network.

  • 940 kW / 1,260 HP
    ENGINE POWER
  • 261 kg
    OPERATING WEIGHT
  • 15 - 16 m³
    BUCKET CAPACITY

Current Offers

Safeguard your operators and work site

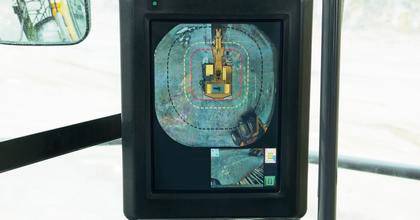

Operator and work site safety are a priority. Komatsu hydraulic excavators have an LED screen to give your operator a 360-degree view, each meet ISO 10262, 6394, 10263-4 safety stand-ards, and all include anti-slip gratings, easy ingress/egress and an innovative emergency escape system.

Customised to your operation

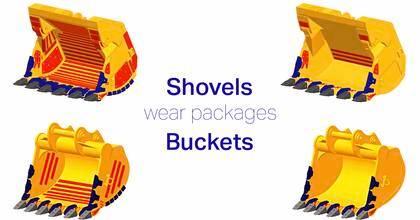

While Komatsu shovels and backhoes meet the density benchmark of 1.8 t/m³, you have the option to customize your machine to the bucket size and wear package you need, and choose your heating/cooling systems, travel gear protections, special track pad variations and more.

Sustainable, powerful engines

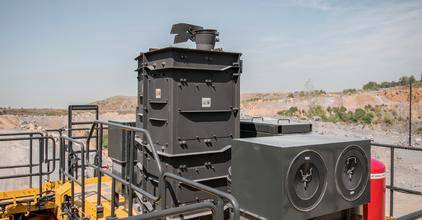

Tier 4 engines deliver plenty of power with outstanding sustainability. An exhaust after-treatment system reduces particulate matter, sulfur oxides and dangerous NOx, and easy servicing of emissions components.
