SPECIFICATIONS

EXPAND ALL COLLAPSE ALL
  • Engine

    Model Komatsu 3D67E-2
    Type Swirl Chamber
    Number of Cylinders 3
    Piston Displacement 0.78 ltr
    Horsepower, Gross - SAE J1995 11.2 kW
    Horsepower, Net - ISO 9249 / SAE J1349 11.2 kW
    Rated RPM 2600
    Fan drive method Mechanical
    Emissions certification EPA Tier 3
  • Hydraulic System

    Type HydrauMind System
    Main pump type Variable displacement pump
    Pump for Boom, arm, bucket, swing, and travel circuits
    Maximum flow 95.9 ltr/min
    Hydraulic Motors
    Travel 2 x Variable capacity
    Swing 1 x Fixed capacity



  • Drives and Brakes

    Steering control Two levers with pedals
    Drive method Fully hydrostatic
    Maximum drawbar pull 1700 kg
    Gradeability 58 %
    Travel speeds 2.3 / 4.3 km/h
    Service brake Hydraulic lock
  • Swing System

    Driven by Hydraulic motor
    Service brake Hydraulic lock
    Swing speed 8.9 rpm
  • Undercarriage

    Track adjuster Grease
    Number of shoes (each side) 35
    Number of carrier rollers (each side) 0
    Number of track rollers (each side) 3
  • Coolant & Lubricant capacity

    Fuel tank 19 ltr
    Coolant 3.1 ltr
    Engine 3.3 ltr
    Hydraulic tank 15.2 ltr
    DEF tank None
  • Weights

    Operating weight 1,780 kg

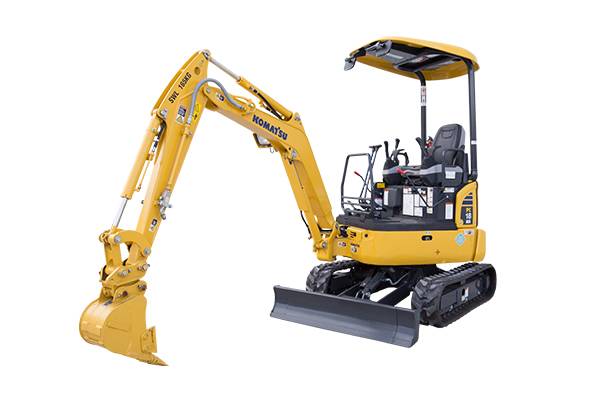

PC18MR-3 Excavators

Our smallest digger is a tough and productive machine in a small package, perfect for rental fleets, owner-operators, builders, plumbers, electricians and other tradies – or anyone who needs to work in confined conditions. It incorporates features of bigger Komatsu excavators, with key components designed and manufactured by Komatsu to work together in an integrated package. And it’s standard with our KOMTRAX remote monitoring and location system, backed by our NZ-wide service and support network.


  • 11.2 kW / 15 HP
    ENGINE POWER
  • 1,780 kg
    OPERATING WEIGHT
  • 0.044 m³
    BUCKET CAPACITY

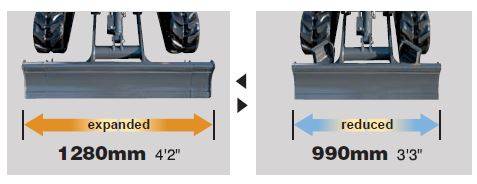

Expandable Undercarriage

The PC18MR-3 can pass through narrow space due to narrow width and undercarriage can be expanded for good stability during excavation.

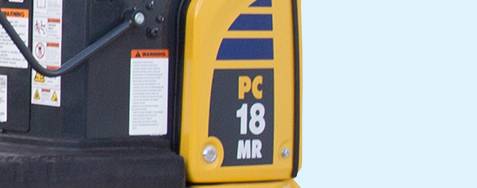

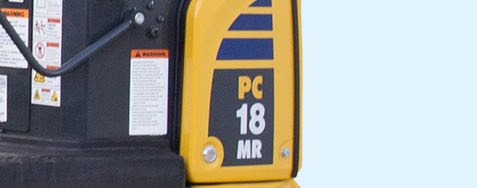

Tight Tail Swing

Operator is able to focus on the work in front of them and worry less about a rear swing impact, even in confined areas with only an 80mm 3" projection over the tracks.

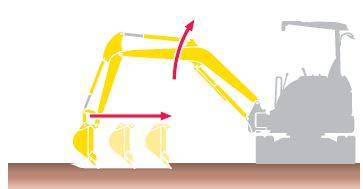

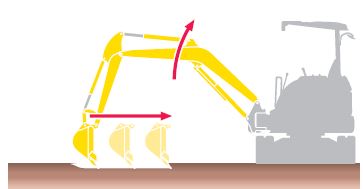

Closed-centre Load Sensing System

When two or more actuators are operated simultaneously, the pressure-compensated CLSS system ensures each actuator works according to its control input, regardless of the size of the load. This gives the operator precise control at all times.
