SPECIFICATIONS

EXPAND ALL COLLAPSE ALL
  • Working ranges

    Height of cut16.8 m
    Radius of cut23.3 m
    Dumping height* (door open)10.2 m
    Floor level radius15.3 m
    Tail swing radius9.8 m
    Operator eye level10.1 m
  • Capacity

    Nominal payload*73 - 82 mt
    Nominal dipper capacity SAE struck 42 - 49 m3
    Rated suspended load173 mt
    Optimum truck size (360 mt (400 st) truck shown)218 - 360 mt
  • Power requirements

    Supply voltage*7 200 or 13 800V 3 Phase, 60 Hz
    Supply voltage*6 000, 6 600, 7 200 or 11 000 Hz 3 Phase, 50 Hz
    Supply transformer(Minimum) 3 750 kVA
    Minimum short circuit VA available at shovel30 MVA
  • Propel

  • Crowd

  • Swing

  • Hoist

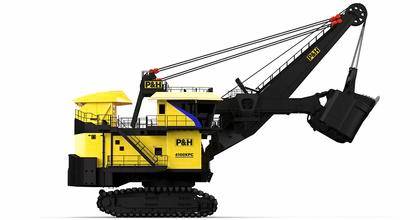

4100XPC-AC90 Electric Rope Shovels

Designed to move more materials efficiently and cost effectively in tough environments. The P&H 4100XPC AC-90 combines high dig forces and massive payload capacity hour after productive hour with an AC electrical system.

Current Offers

Stability throughout the dig cycle

Built to handle hard materials with focus on penetrating the bank, the P&H twin leg handle focuses energy and cutting force by preventing the twisting or rotating of the dipper.

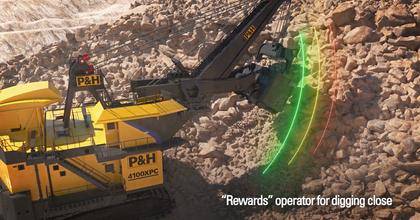

Controls designed to boost production

P&H Adaptive Controls is a suite of integrated control functions designed to build on the strengths of the P&H shovel. Engineered to increase production by up to 9% and eliminate boom jacking by up to 50% with no negative effects on shovel structures.

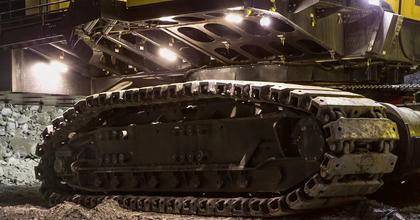

Delta style undercarriage

Minimise maintenance with a proven shoe and tumbler that requires minimal intervention and allows for operation in a loose track configuration.
