SPECIFICATIONS

EXPAND ALL COLLAPSE ALL
  • Engine

    Model Komatsu SAA6D125E-5
    Type 4-cycle, water-cooled, direct injection
    Aspiration Turbocharged, after-cooled, cooled EGR
    Number of Cylinders 6
    bore x stroke 125 mm x 150 mm
    Horsepower, Gross - SAE J1995 199 kW / 266 HP
    Horsepower, Net - ISO 9249 / SAE J1349 197 kW / 264 HP
    Rated RPM 1900
    Piston displacement 11.04 ltr
    Fan drive type Hydraulic
    Lubrication system Gear pump
    Emissions certification EPA Tier 3
  • Hydraulic System

    Type Closed-centre load sensing system
    Maximum pump flow 195 ltr/min
    Relief valve setting 230 kg/cm2
    Hydraulic cylinder No. of cylinders x bore
    Blade lift 2 x 100 mm
    Blade tilt 1 x 150 mm
    Ripper lift 2 x 130 mm
  • Torqflow transmission

    Komatsu TORQFLOW transmission consists of a water-cooled, 3-element, 1-stage, 1-phase, torque converter and a planetary gear, multiple-disc clutch transmission which is hydraulically-actuated and force-lubricated for optimum heat dissipation. Gearshift lock lever and neutral safety switch prevent accidental starts.

    Travel speeds
    Forward 0 - 10.1 km/h
    Reverse 0 - 13.0 km/h
  • Final drives

    Double-reduction final drive of spur and planetary gear sets to increase tractive effort and reduce gear tooth stresses for long final drive life. Segmented sprocket rims are bolt-on for easy replacement.

  • Steering system

    PCCS lever controls for all directional movements. Pushing the PCCS lever forward results in forward machine travel, while pulling it rearward reverses the machine. Simply tilt the PCCS lever to left to
    make a left turn. Hydrostatic Steering System (HSS) is powered by steering planetary units and an independent hydraulic pump and motor. Counterrotation turns are also available.Wet, multiple-disc, pedal-controlled service brakes are spring-actuated and hydraulically released. Gear shift lock lever also applies parking brake.

    Type Hydrostatic Steering system
    Minimum turning radius 1.99 - 2.24 m
  • Undercarriage

    Suspension Oscillating equaliser bar and pivot shaft
    Track roller frame Monocoque, large section, durable construction
    Rollers and idlers Lubricated track rollers
    Number of track rollers (each side) 7 - 8
    Type of shoes Single grouser
    Number of shoes (each side) 41 - 45
    Shoe width 560 - 910 mm
  • Coolant & Lubricant capacity

    Coolant 58 ltr
    Fuel tank 490 ltr
    Engine oil 38 ltr
    Final drive (each side) 26 ltr
    Torque converter, transmission, bear gear, and steering system 60 ltr
    DEF tank None
  • Weights

    Operating weight 19,510 - 21,890 kg

D85EX/PX-15E0 Dozers

Our 27.65-28.1 tonne D85EX/PX-15EO dozer, available in standard and low-ground-pressure undercarriage versions, and a choice of Sigma and semi-U blades. Applications include civil construction, local government, waste management, agriculture and other sectors. As with all our dozers, key components are designed and manufactured by Komatsu to work together in an integrated package. And it comes standard with our KOMTRAX remote monitoring and location system, backed by our NZ-wide service and support network.

  • 197 kW / 264 HP
    ENGINE POWER
  • 28,100 kg
    OPERATING WEIGHT
  • 5.9 m³
    BLADE CAPACITY

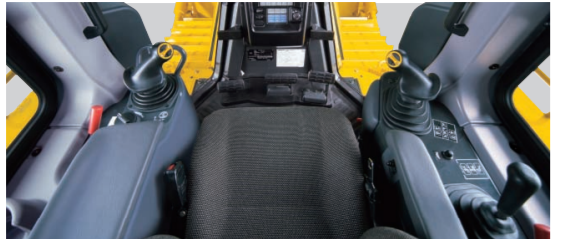

Ergonomic Control System

Palm command travel joystick provides the operator with a relaxed posture and superb fine control without operator fatigue. Transmission gear shifting is simplified with thumb push buttons.
