SPECIFICATIONS

EXPAND ALL COLLAPSE ALL
  • Engine

    Model Komatsu SAA6D107E-2
    Type 4-cycle, water-cooled, direct injection
    Aspiration Turbocharged, after-cooled, cooled EGR
    Number of Cylinders 6
    bore x stroke 107 mm x 124 mm
    Horsepower, Gross - SAE J1995 126 kW / 169 HP
    Horsepower, Net - ISO 9249 / SAE J1349 125 kW / 168 HP
    Rated RPM 2200
    Piston displacement 6.69 ltr
    Fan drive type Hydraulic
    Lubrication system Gear pump
    Emissions certification EPA Tier 4 interim
  • Hydraulic System

    Type Closed-centre load sensing system
    Maximum pump flow 171 ltr/min
    Relief valve setting - For implement 280 kg/cm2
    Hydraulic cylinder No. of cylinders x bore
    Blade lift 2 x 100 mm
    Blade tilt 1 x 120 mm
    Blade angle 2 x 110 mm
  • Hydrostatic transmission

    Dual-path, hydrostatic transmission provides infinite speed changes up to 9,0 km/h. The variable capacity travel motors allow the operator to select the optimum speed to match specific jobs. Travel control lock lever and neutral switch.

    Travel speeds
    Forward 0 - 9 km/h
    Reverse 0 - 9 km/h
  • Final drives

    Type Planetary gear, double-reduction
    Sprocket Segmented sprocket teeth are bolt-on
  • Steering system

    Type Hydrostatic Steering system
    Steering control PCCS-lever
    Minimum turning radius 2.1 - 2.3 m
  • Undercarriage

    Suspension Oscillating equaliser bar and forward pivot shaft
    Track roller frame Monocoque, large section, durable construction
    Tracks PLUS link assebmly
    Track tension Combined spring and hydraulic unit
    Number of track rollers (each side) 8
    Number of shoes (each side) 46
    Number of carrier rollers (each side) 2
    Shoe width 600 - 860 mm
  • Coolant & Lubricant capacity

    Coolant 45 ltr
    Fuel tank 372 ltr
    Engine oil 27 ltr
    Final drive (each side) 8.1 ltr
    Hydraulic tank 101 ltr
    DEF tank None
  • Weights

    Operating weight 17,890 - 20,527 kg

D61EXi/PXi-23 Dozers

Our intelligent Machine Control (iMC) D61EXi/PXi-23 – available in both standard and low-ground-pressure configurations – incorporates a unique fully integrated blade control system, allowing it to carry out both bulk and final trim dozing in automatic from start to finish with final grade performance. This significantly increases productivity and efficiency while reducing the cost of each metre of material moved. And it comes standard with our KOMTRAX remote monitoring and location system, backed by our New Zealand-wide service and support network.

  • 125 kW / 168 HP
    ENGINE POWER
  • 17,890 kg
    OPERATING WEIGHT
  • 3.8 m³
    BLADE CAPACITY

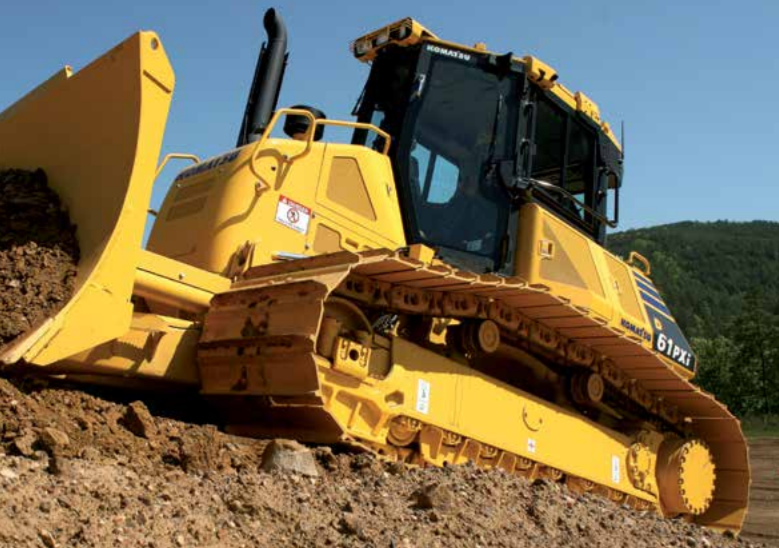

Highly efficient hydrostatic drive line

The hydrostatic drive line is a key factor in the performance of the D61EXi/PXi-23 dozer. It supplies high drawbar pull when needed and a highly fuel efficient drive line for grading and precision work. With a choice between two operating modes, the operator can select either “quick-shift” or “variable speed” to match a complete range of applications in the most economic and easy way.

Unrivaled Blade Visibility

The D61EXi/PXi-23 incorporates Komatsu's super-slant nose design. Komatsu's innovative design provides excellent blade visibility for improved machine control and increased efficiency and productivity.

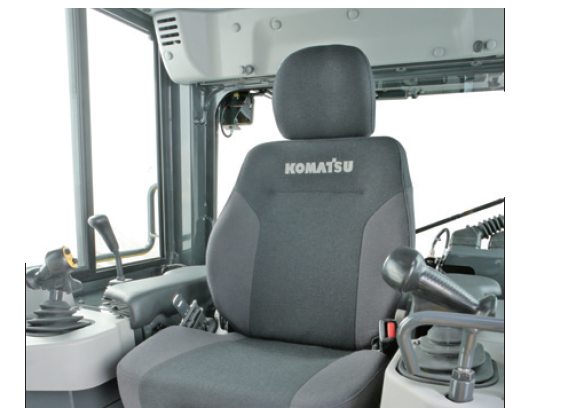

Comfortable Working Space

The D61EXi/PXi-23's cab mount uses a cab damper system and provides shock and vibration absorption conventional mounting systems cannot match. The Silicon-oil-filled cab damper mount helps to isolate the cab from the machine body, suppressing vibration and providing a quiet, comfortable operating environment.
